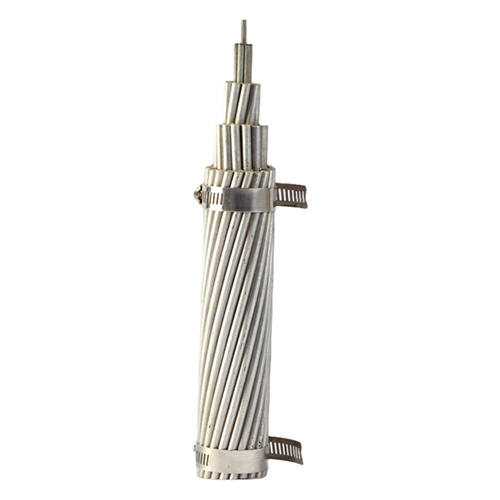

(ACSR) Steel Wire Reinforced Aluminum Conductor

Description Review

Description

APPLICATION

(ACSR) Steel Wire Reinforced Aluminum Conductor is used as bare conductor of overhead power transmission line. ACSR offers required strength without sacrificing ampacity.

MATERIALS

High strength galvanized steel wire & Aluminum 1350 wire.

STANDARDS

IEC 61089, BS EN 50182, BS 215-2, DIN 48204, ASTM B232, GB/T 1179, etc.

DATA SHEET

IEC 61089

Code	Section			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
Code	Al	St	Total	Al	St	Al	St	Core	Conductor	Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
\	mm2	mm2	mm2	Nos	Nos	mm	mm	mm	mm	kg/km	kN	Ω/km
16	16	2.67	18.7	6	1	1.84	1.84	1.84	5.53	64.6	6.08	1.7934
25	25	4.17	29.2	6	1	2.3	2.3	2.3	6.91	100.9	9.13	1.1478
40	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74	161.5	14.4	0.7174
63	63	10.5	73.5	6	1	3.66	3.66	3.66	11	254.4	21.63	0.4555
100	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	34.33	0.2869
125	125	6.94	132	18	1	2.97	2.97	2.97	14.9	397.9	29.17	0.2304
125	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	45.69	0.231
160	160	8.89	169	18	1	3.36	3.36	3.36	16.8	508.3	36.18	0.18
160	160	26.1	186	26	7	2.8	2.18	6.53	17.7	644.9	57.69	0.1805
200	200	11.1	211	18	1	3.76	3.76	3.76	18.8	636.7	44.22	0.144
200	200	32.6	233	26	7	3.13	2.43	7.3	19.8	806.2	70.13	0.1444
250	250	24.6	275	22	7	3.8	2.11	6.34	21.6	880.6	68.72	0.1154
250	250	40.7	291	26	7	3.5	2.72	8.16	22.2	1007.7	87.67	0.1155
315	315	21.8	337	45	7	2.99	1.99	5.97	23.9	1039.3	79.03	0.0917
315	315	51.3	366	26	7	3.93	3.05	9.16	24.9	1269.7	106.83	0.0917
400	400	27.7	428	45	7	3.36	2.24	6.73	26.9	1320.1	98.36	0.0722
400	400	51.9	452	54	7	3.07	3.07	9.21	27.6	1510.3	123.04	0.0723
450	450	31.1	481	45	7	3.57	2.38	7.14	28.5	1485.2	107.47	0.0642
450	450	58.3	508	54	7	3.26	3.26	9.77	29.3	1699.1	138.42	0.0643
500	500	34.6	535	45	7	3.76	2.51	7.52	30.1	1650.2	119.42	0.0578
500	500	64.8	565	54	7	3.43	3.43	10.3	30.9	1887.9	153.8	0.0578
560	560	38.7	599	45	7	3.98	2.65	7.96	21.8	1848.2	133.74	0.0516
560	560	70.9	631	54	19	3.63	2.18	10.9	21.7	2103.4	172.59	0.0516
630	630	43.6	674	45	7	4.22	2.81	8.44	33.8	2079.2	150.45	0.0459
630	630	79.8	710	54	19	3.85	2.31	11.6	34.7	2366.3	191.77	0.0459
710	710	49.1	759	45	7	4.48	2.99	8.96	35.9	2343.2	169.56	0.0407
710	710	89.9	800	54	1	4.09	2.45	12.3	36.8	2666.8	216.12	0.0407
800	800	34.6	835	72	7	3.76	2.51	7.52	37.6	2480.2	167.41	0.0361
800	800	66.7	867	84	7	3.48	3.48	10.4	38.3	2732.7	205.33	0.0362
800	800	101	901	54	19	4.34	2.61	13	39.1	3004.9	243.52	0.0362
900	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2790.2	188.33	0.0321
900	900	75	975	84	7	3.69	3.69	11.1	40.6	3074.2	226.5	0.0322
1000	1000	43.2	1043	72	7	4.21	2.8	8.41	42.1	3100.3	209.26	0.0259
1120	1120	47.3	1167	72	19	4.45	1.78	8.9	44.5	3464.9	234.53	0.0258
1120	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3	3811.5	283.17	0.0232
1250	1250	102	1352	84	19	4.35	2.61	13.1	47.9	4253.9	316.04	0.0232
1250	1250	52.8	1303	72	19	4.70	1.88	9.4	47.0	3867.1	261.75	0.0231

BS 215

Code	Section				Number of Wires		Diameter of Wires		Diameter		Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
Code	Normal	Al	St	Total	Al	St	Al	St	Core	Conductor	Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
\	mm2	mm2	mm2	mm2	Nos	Nos	mm	mm	mm	mm	kg/km	kN	Ω/km
Mole	10	10.6	1.8	12.4	6	1	1.5	1.5	1.5	4.5	43	0.045	2.706
Squirrel	20	20.9	3.5	24.4	6	1	2.11	2.11	2.11	6.33	85	0.0633	1.368
Gopher	25	26.2	4.4	30.6	6	1	2.36	2.36	2.36	7.08	106	0.0708	1.093
Weasel	30	31.6	5.3	36.9	6	1	2.59	2.59	2.59	7.77	128	0.0777	0.9077
Fox	35	36.7	6.1	42.8	6	1	2.79	2.79	2.79	8.37	149	0.0837	0.7822
Ferret	40	42.4	7.1	49.5	6	1	3.00	3.00	3.00	9.00	172	0.09	0.6766
Rabbit	50	52.9	8.8	61.7	6	1	3.35	3.35	3.35	10.05	214	0.1005	0.5426
Mink	60	63.2	10.5	73.7	6	1	3.66	3.66	3.666	10.98	255	0.1098	0.4545
Skunk	60	63.3	36.9	100.3	12	7	2.59	2.59	7.77	12.95	465	0.1295	0.4567
Beaver	70	74.8	12.5	87.3	6	1	3.99	3.99	3.99	11.97	302	0.1197	0.3825
Horse	70	73.4	42.8	116.2	12	7	2.79	2.79	8.37	13.95	538	0.1395	0.3936
Racoon	75	79.2	13.2	92.4	6	1	4.1	4.10	4.10	12.30	320	0.123	0.3622
Otter	80	83.9	14.0	97.9	6	1	4.22	4.22	4.22	13.98	339	0.1398	0.3419
Cat	90	95.4	15.9	111.3	6	1	4.50	4.50	4.50	15.90	386	0.159	0.3007
Hare	100	105.0	17.5	122.5	6	1	4.72	4.72	4.72	17.5	425	0.175	0.2733
Dog	100	105.0	13.6	118.5	6	7	4.72	1.57	4.71	14.15	394	0.1415	0.2733
Hyena	100	105.8	20.5	126.2	7	7	4.39	1.93	5.79	14.57	450	0.1457	0.2712
Leopard	125	131.3	16.8	148.1	8	7	5.28	1.75	5.25	15.81	492	0.1581	0.2184
Coyote	125	132.1	20.1	152.2	26	7	2.54	1.91	5.73	15.89	522	0.1589	0.2187
Congar	125	130.3	7.3	137.5	18	1	3.05	3.05	3.05	15.25	419	0.1525	0.2189
Tiger	125	131.1	30.6	161.7	30	7	2.36	2.36	7.08	16.52	602	0.1652	0.2202
Dingo	150	158.7	8.8	167.5	18	1	3.35	3.35	3.35	16.75	506	0.1675	0.1815
Wolf	150	158.7	36.9	194.9	30	7	2.59	2.59	7.77	18.13	726	0.1813	0.1828
Caracal	175	184.3	10.2	194.5	18	1	3.61	3.61	3.61	18.05	587	0.1805	0.1563
Lynx	175	183.4	42.8	226.2	30	7	2.79	2.79	8.37	19.53	842	0.1953	0.1576
Jaguar	200	210.6	11.7	222.3	18	1	3.86	3.86	3.86	19.3	671	0.193	0.1367
Panther	200	212.1	49.5	261.5	30	7	3.00	3.00	9.00	21.0	974	0.21	0.1363
Lion	225	238.5	55.6	294.2	30	7	3.18	3.18	9.54	22.26	1095	0.2226	0.1212
Bear	250	264.0	61.7	325.6	30	7	3.35	3.35	10.05	23.45	1213	0.2345	0.1093
Goat	300	324.3	75.7	400.0	30	7	3.71	3.71	11.13	25.97	1489	0.1597	0.0891
Sheep	350	374.1	87.5	461.4	30	7	3.99	3.99	11.97	27.93	1718	0.2793	0.07704
Antilope	350	373.1	48.5	421.5	54	7	2.97	2.97	8.91	26.73	1411	0.2673	0.07727
Bizon	350	381.8	49.5	431.3	54	7	3.00	3.00	9.00	27.00	1444	0.27	0.07573
Deer	400	429.3	100.2	529.5	30	7	4.27	4.27	12.81	28.89	1971	0.2889	0.0674
Zebra	400	428.9	55.6	484.5	54	7	3.18	3.18	9.54	28.62	1621	0.2862	0.0674
Elk	450	477.0	111.3	588.3	30	7	4.50	4.50	13.5	31.50	2190	0.315	0.06056
Camel	450	475.2	61.7	536.8	54	7	3.35	3.35	10.05	30.15	1777	0.3015	0.06073
Moose	500	528.7	68.5	597.2	54	7	3.53	3.53	10.59	31.77	1999	0.3177	0.0547
Finch	500	564.7	78.3	462.9	54	19	3.65	2.29	11.45	33.35	2243	0.3335	0.0512

DIN 48204

Code	Section			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
Code	Al	St	Total	Al	St	Al	St	Core	Conductor	Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
\	mm2	mm2	mm2	Nos	Nos	mm	mm	mm	mm	kg/km	kN	Ω/km
16/2.5	15	2.5	17.8	6	1	1.80	1.80	1.80	5.4	62	5.95	1.878
25/4	23.8	4	27.8	6	1	2.25	2.50	2.50	6.8	97	9.2	1.2002
35/6	34.3	5.7	40	6	1	2.70	2.70	2.70	8.1	140	12.65	0.8352
44/32	44	31.7	75.7	14	7	2.00	2.40	7.20	11.2	372	45	0.6573
50/8	48.3	8	56.3	6	1	3.20	3.20	3.20	9.6	196	17.1	0.5946
50/30	51.2	29.8	81	12	7	2.33	2.33	6.99	11.7	378	43.8	0.5643
70/12	69.9	11.4	81.3	26	7	1.85	1.44	4.32	11.7	284	26.8	0.413
95/15	94.4	15.3	109.7	26	7	2.15	1.67	5.01	13.6	383	35.75	0.3058
95/55	96.5	56.3	152.8	12	7	3.20	3.20	9.60	16.0	712	79.35	0.2992
105/75	105.7	75.5	181.5	14	9	3.10	2.25	9.32	17.5	891	108.45	0.2735
120/20	121.06	19.8	141.4	26	7	2.44	1.90	5.70	15.5	494	45.65	0.2374
120/70	122	71.3	193.3	12	7	3.60	3.60	10.8	18.0	90	100	0.2364
125/30	127.9	29.8	157.7	30	7	2.33	2.33	6.99	16.3	591	57.6	0.2259
150/25	148.9	24.2	173.1	26	7	2.70	2.10	6.30	17.1	605	55.25	0.1939
170/40	171.8	40.1	211.9	30	7	2.70	2.70	8.10	18.9	794	76.75	0.1682
185/30	183.8	29.8	213.6	26	7	3.00	2.33	6.99	19.0	746	66.2	0.1571
210/35	209.1	64.1	243.2	26	7	3.20	2.49	7.47	20.3	850	74.9	0.138
210/50	212.1	49.5	261.6	30	7	3.00	3.00	90.00	21.0	981	93.9	0.1362
230/30	230.9	29.8	260.7	24	7	3.50	2.33	6.99	21.0	877	73.1	0.1249
240/40	243	39.5	282.5	26	7	3.45	2.68	8.04	21.9	987	86.4	0.1188
265/35	263.7	34.1	297.8	24	7	3.74	2.49	7.47	22.4	1002	83.05	0.1094
300/50	304.3	49.5	353.7	26	7	3.86	3.00	9.00	24.5	1236	107	0.09487
305/40	304.6	39.5	344.1	54	7	2.68	2.68	8.04	24.1	1160	99.4	0.0949
340/30	339.3	29.8	369.1	48	7	3.00	2.33	6.99	25.0	1180	92.9	0.08509
380/50	382	49.5	431.5	54	7	3.00	3.00	9.00	27.0	1453	123.1	0.08509
385/35	386	34.1	420.1	48	7	3.20	2.49	7.47	26.7	1344	104.8	0.07573
435/55	434.03	59.3	490.6	54	7	3.20	3.20	9.60	28.8	1653	136.45	0.07478
450/40	448.7	39.5	488.2	48	7	3.45	2.68	8.04	28.7	1561	120.75	0.06656
490/65	490.3	63.6	553.9	54	7	3.40	3.40	10.2	30.6	1866	153.1	0.06434
495/35	494.1	34.1	528.2	45	7	3.74	2.49	7.47	29.9	1646	121.8	0.05846
510/45	510.2	45.3	555.5	48	7	3.68	2.87	8.61	30.7	1778	136.65	0.05655
550/70	550	71.3	621.3	54	7	3.60	3.60	10.8	21.4	2092	170.6	0.05259
560/50	561.7	49.5	611.2	48	7	3.86	3.00	9.00	32.2	1954	148.95	0.0514
570/40	565.5	39.5	610.3	45	7	4.00	2.68	8.04	32.2	1888	139	0.05108
650/45	698.5	45.3	653.49	45	7	4.30	2.87	8.61	34.4	2163	155.52	0.0442
680/85	678.8	86	764.8	54	19	4.00	2.40	12.0	36.0	2570	210.4	0.0426
1045/45	1045.58	45.3	1090.9	72	7	4.30	2.87	8.61	43.0	3249	217.87	0.0277

ASTM B232

Code	Section				Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
Code	AWG	Al	St	Total	Al	St	Al	St	Core	Conductor	Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
\	MCM	mm2	mm2	mm2	Nos	Nos	mm	mm	mm	mm	kg/km	kN	Ω/km
Wren	8	8.34	1.39	9.73	6	1	1.33	1.33	1.33	3.99	33.7	3.08	3.43035
Turkey	6	13.29	2.19	15.48	6	1	1.68	1.68	1.68	5.04	54	5.24	2.1586
Swan	4	21.16	3.55	24.71	6	1	2.12	2.12	2.12	6.36	85	8.32	1.3557
Swante	4	21.16	5.35	26.5	7	1	1.96	2.61	2.61	6.53	100	10.53	1.3557
Swallow	3	26.69	4.45	31.14	6	1	2.38	2.38	2.38	7.14	107.9	10.21	1.0712
Sparrow	2	33.61	5.61	39.22	6	1	2.67	2.67	2.67	8.01	136	12.7	0.8535
Sparate	2	33.61	8.52	42.13	7	1	2.47	3.30	3.30	8.24	159	16.11	0.8535
Robin	1	42.39	7.1	49.49	6	1	3.00	3.00	3.00	9.00	171	15.85	0.6767
Raven	0	53.48	8.9	62.38	6	1	3.37	3.37	3.37	10.11	216	19.32	0.5364
Quail	2/0	67.42	11.23	78.65	6	1	3.78	3.78	3.78	11.34	273	23.62	0.4255
Pigeon	3/0	85.03	14.19	99.22	6	1	4.25	4.25	4.25	12.75	343	29.41	0.3373
Penguin	4/0	107.23	17.87	125.1	6	1	4.77	4.77	4.77	14.31	433	37.06	0.2675
Waxwing	266.8	135.16	7.48	142.64	18	1	3.09	3.09	3.09	15.45	431	30.27	0.2133
Partridge	266.8	135.16	22	157.16	26	7	2.57	2.00	6.00	16.28	546	50.29	0.2143
Ostrich	300	152	24.71	176.71	26	7	2.73	2.12	6.36	17.28	614	56.52	0.1906
Merlin	336.4	170.45	9.48	179.93	18	1	3.47	3.47	3.47	17.35	544	38.23	0.1691
Linnet	336.4	170.45	27.81	198.26	26	7	2.89	2.25	6.75	18.31	689	62.71	0.1699
Oriole	336.4	170.45	39.81	210.26	30	7	2.69	2.68	8.07	18.83	784	77.45	0.1704
Chickadee	397.5	201.42	11.16	212.58	18	1	3.77	3.77	3.77	18.85	642	43.99	0.1431
Brant	397.5	201.42	26.13	227.55	24	7	3.27	2.18	6.54	19.61	762	64.69	0.1438
Lbis	397.5	201.42	32.77	234.19	26	7	3.14	2.44	7.32	19.88	814	72.11	0.1438
Lark	397.5	201.42	46.97	248.39	30	7	2.92	2.92	8.96	20.44	927	88.69	0.1442
Pelican	477	241.68	13.42	255.1	18	1	4.12	4.14	4.14	20.7	771	52.16	0.1193
Flicker	477	241.68	31.29	272.97	24	7	3.58	2.39	7.17	21.49	915	76.66	0.1199
Hawk	477	241.68	39.42	281.1	26	7	3.44	2.67	8.01	21.79	978	86.65	0.1199
Hen	477	241.68	56.39	298.07	30	7	3.20	3.20	9.60	22.4	1112	105.34	0.1201
Osprey	556.5	282	15.68	297.68	18	1	4.47	4.47	4.47	22.35	899	60.88	0.1022
Parakeet	556.5	282	36.58	318.58	24	7	3.87	2.58	7.74	23.22	1067	88.22	0.1027
Dove	556.5	282	45.94	327.94	26	7	3.72	2.89	8.67	23.55	1140	101.03	0.1027
Eagle	556.5	282	65.81	347.81	30	7	3.46	3.46	10.38	24.21	1298	133.92	0.103
Peacock	605	306.58	39.74	346.32	24	7	4.03	2.69	8.07	24.2	1160	95.88	0.0945
Squab	605	306.58	49.94	356.52	26	7	3.87	3.01	9.03	24.51	1240	108.41	0.0945
Wood Duck	605	306.58	71.55	378.13	30	7	3.61	3.61	10.83	25.25	1411	128.84	0.0947
Teal	605	306.58	69.87	376.45	30	19	3.61	2.16	10.80	25.24	1399	133.59	0.0947
Kingbird	636	322.26	17.9	340.16	18	1	4.78	4.78	4.78	23.88	1028	69.56	0.08945
Rook	636	322.26	41.81	364.07	24	7	4.14	2.76	8.28	24.84	1219	100.83	0.08989
Grosbeak	636	322.26	52.45	374.71	26	7	3.97	3.09	9.27	25.15	1302	111.8	0.08989
Scoter	636	322.26	75.22	394.48	30	7	3.70	3.70	11.1	25.88	1484	135.44	0.09011
Egret	636	322.26	73.55	395.81	30	19	3.70	2.22	11.1	25.9	1470	140.55	0.09011
Swift	636	322.26	8.96	331.22	36	1	3.38	3.38	3.38	23.62	958	60.52	0.08945
Flamingo	666.6	337.74	43.81	381.55	24	7	4.23	2.82	8.46	25.4	1278	105.66	0.08577
Gannet	666.6	337.74	55.03	392.77	26	7	4.07	3.16	9.48	25.76	1365	117.33	0.08577
Stilt	715.5	362.58	46.97	409.55	24	7	4.39	2.92	8.76	26.31	1372	113.35	0.07989
Starling	715.5	362.58	59.03	421.61	26	7	4.21	3.28	9.84	26.68	1466	125.91	0.07989
Redwing	715.5	362.58	82.58	445.16	30	19	3.92	2.35	11.75	27.43	1653	153.94	0.08009
Tern	795	402.84	27.87	430.71	45	7	3.38	2.25	6.75	27.03	1333	97.37	0.07191
Condor	795	402.84	52.19	455.03	54	7	3.08	3.08	9.24	27.72	1524	124.45	0.07911
Cockoo	795	402.84	52.19	455.03	24	7	4.62	3.08	9.24	27.74	1522	123.94	0.07191
Drake	795	402.84	65.51	468.45	26	7	4.44	3.45	10.35	28.11	1628	139.92	0.07191
Coot	795	402.84	11.16	414	36	1	3.77	3.77	3.77	26.41	1198	74.85	0.07156
Mallard	795	402.84	91.87	484.71	30	19	4.14	2.48	12.4	28.96	1838	171.18	0.07208
Ruddy	900	456.06	31.54	487.6	45	7	3.59	2.40	7.2	28.73	1510	109.31	0.06351
Canary	900	456.06	59.1	515.16	54	7	3.28	3.28	9.84	29.52	1724	140.95	0.06351
Rail	954	483.42	33.42	516.84	45	7	3.70	2.47	7.41	29.61	1601	115.85	0.05992
Catbird	954	483.42	13.42	496.84	36	1	4.14	4.14	4.14	28.95	1438	87.66	0.05962
Cardinal	954	483.42	62.65	546.07	54	7	3.38	3.38	10.14	30.42	1829	149.36	0.05992
Ortolan	1033.5	523.68	36.19	559.87	45	7	3.85	2.57	7.71	30.81	1734	123.1	0.05331
Tanager	1033.5	523.68	14.51	538.19	36	1	4.30	4.30	4.30	30.12	1556	94.93	0.05504
Curlew	1033.5	523.68	67.87	591.55	54	7	3.52	3.52	10.56	31.68	1981	161.8	0.05531
Bluejay	1113	563.93	39.03	602.96	45	7	4.00	2.66	7.98	31.98	1868	132.63	0.05136
Finch	1113	563.93	71.55	635.48	54	19	3.65	2.19	10.95	32.85	2130	174.41	0.05161
Bunting	1192.5	604.26	41.55	645.81	48	7	4.14	2.76	8.28	33.12	2001	141.79	0.04793
Grackle	1192.5	604.26	76.58	680.84	54	19	3.77	2.27	11.35	33.97	2282	186.78	0.04817
Bittern	1272	644.51	44.52	689.03	45	7	4.27	2.85	8.55	34.17	2134	151.48	0.04494
Pheasant	1272	644.51	81.63	726.19	54	19	3.90	2.34	11.7	35.10	2433	194	0.04516
Skylark	1272	644.51	17.87	662.38	36	1	4.78	4.78	4.78	33.42	1917	115.85	0.04472
Dipper	1351.5	684.84	47.1	731.94	45	7	4.40	2.92	8.76	35.16	2266	160.7	0.0423
Martin	1351.5	684.84	88.71	771.55	54	19	4.02	2.41	12.05	36.17	2585	206.05	0.0425
Bobolink	1431	725.1	50.32	775.42	45	7	4.53	3.02	9.06	36.24	2402	170.71	0.03994
Plover	1431	725.1	91.87	816.97	54	19	4.14	2.48	12.4	37.24	2738	218.24	0.04013
Nuthatch	1510.5	765.35	52.9	818.25	45	7	4.65	3.10	9.3	37.2	2564	177.89	0.03784
Parrot	1510.5	765.35	96.84	862.19	54	19	4.25	2.55	12.75	38.25	2890	230.2	0.03802
Lapwing	1590	805.68	55.48	861.16	45	7	4.77	3.18	9.54	38.16	2667	187.02	0.03595
Falcon	1590	805.68	102.1	907.81	54	19	4.36	2.62	13.1	39.26	3042	242.55	0.03613
Chukar	1780	902.7	73.51	902.72	84	19	3.70	2.22	11.1	40.7	3086	226.85	0.03245
BlueBird	2156	1092	88.8	1092.28	84	19	4.07	2.44	12.2	44.76	3733	268.3	0.02681
Kiwi	2167	1100	47.5	1099.2	72	7	4.41	2.94	8.82	44.07	3427	221.6	0.02684
Thrasher	2312	1170.8	65.15	1170.8	76	19	4.43	2.09	10.45	45.9	3767	253	0.02478
Grouse	80	40.52	14.13	54.65	8	1	2.54	4.24	4.24	9.32	222	23.6	0.7115
Petrel	101.8	51.61	30.06	81.67	12	7	2.34	2.34	7.02	11.71	378	47.15	0.5613
Minorca	110.8	56.13	32.77	88.9	12	7	2.44	2.44	7.32	12.22	412	51.25	0.5161
Leghorn	134.6	68.19	39.81	108	12	7	2.69	2.69	8.07	13.46	500	61.7	0.4248
Guinea	159	80.58	46.97	127.55	12	7	2.92	2.92	8.76	14.63	590	72.55	0.3595
Dotterel	176.9	89.48	52.19	141.67	12	7	3.08	3.08	9.24	15.42	657	78.5	0.3237
Dorking	190.8	96.71	56.39	153.1	12	7	3.20	3.20	9.6	16.03	709	84.8	0.2995
Brahma	203.2	102.97	91.87	194.84	16	19	2.86	2.48	12.4	18.14	1007	128.8	0.2813
Cochin	211.3	107.1	62.45	169.55	12	7	3.37	3.37	10.11	1684	765	93.9	0.2705
