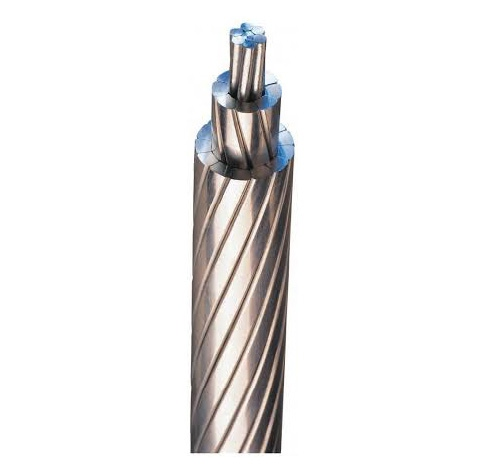

(ACSS/TW) Steel Recinforced Trapezoidal Shaped Soft Aluminum Conductors is designed to operate continuously at elevated temperatures up to 250°C without loss of strength, it sags less under emergency electrical loadings than ACSR/TW, excellent self-damping properties, and its final sags are not affected by long-term creep of aluminum.
Various types of steel wire & T-Shaped Aluminum 1350-O wires.
ASTM B857
ASTM B857
| Code |
Size |
Stranding |
Diameter of Wire |
Diameter |
Norminal Mass |
Rated Strength |
| Al |
St |
St |
GA2 or MA2 |
GA3 or MA3 |
GA4 or MA4 |
GA5 or MA5 |
AW2 |
AW3 |
| \ |
kcmil |
Nos |
Nos |
in. |
in. |
lb/1000ft |
kips |
kips |
kips |
kips |
kips |
kips |
| Partidge/ACSS/TW |
266.8 |
18 |
7 |
0.0788 |
0.58 |
349.0 |
8.9 |
9.7 |
10.8 |
11.4 |
8.4 |
8.9 |
| Oriole/ACSS/TW |
336.4 |
17 |
7 |
0.1059 |
0.69 |
526.0 |
14.8 |
16.3 |
18.2 |
19.1 |
14.2 |
14.8 |
| Flicker/ACSS/TW |
477 |
18 |
7 |
0.0940 |
0.78 |
612 |
13.0 |
14.2 |
15.7 |
16.4 |
12.5 |
13.0 |
| Hawk/ACSS/TW |
477 |
18 |
7 |
0.1053 |
0.79 |
655 |
15.6 |
17.1 |
18.9 |
19.8 |
14.9 |
15.6 |
| Hen/ACSS/TW |
477 |
17 |
7 |
0.1261 |
0.83 |
746 |
21.0 |
22.7 |
25.4 |
26.7 |
20.1 |
20.5 |
| Parakeet/ACSS/TW |
556.5 |
18 |
7 |
0.1015 |
0.84 |
714 |
15.2 |
16.6 |
18.3 |
19.1 |
14.6 |
15.2 |
| Dove/ACSS/TW |
556.5 |
20 |
7 |
0.1138 |
0.85 |
764 |
18.2 |
19.9 |
22.1 |
23.1 |
17.5 |
18.2 |
| Rook/ACSS/TW |
636 |
18 |
7 |
0.1085 |
0.89 |
818 |
17.3 |
19.0 |
20.9 |
21.9 |
16.7 |
17.3 |
| Grosbeak/ACSS/TW |
636 |
20 |
7 |
0.1216 |
0.91 |
873 |
20.7 |
22.4 |
24.8 |
26.0 |
19.9 |
20.3 |
| Tern/ACSS/TW |
795 |
17 |
7 |
0.0886 |
0.96 |
891 |
14.2 |
15.2 |
16.6 |
17.5 |
13.5 |
14.2 |
| Puffin/ACSS/TW |
795 |
18 |
7 |
0.1108 |
0.98 |
974 |
18.9 |
20.6 |
22.6 |
23.7 |
18.3 |
18.9 |
| Condor/ACSS/TW |
795 |
20 |
7 |
0.1213 |
0.99 |
1020 |
21.7 |
23.3 |
25.7 |
26.9 |
20.9 |
21.3 |
| Draka/ACSS/TW |
795 |
20 |
7 |
0.1360 |
1.01 |
1091 |
25.9 |
28.0 |
31.0 |
32.5 |
24.4 |
25.4 |
| Mallard/ACSS/TW |
795 |
22 |
19 |
0.0977 |
1.05 |
1234 |
34.3 |
16.4 |
42.1 |
44.3 |
32.9 |
34.3 |
| Phoenix |
954 |
30 |
7 |
0.0837 |
1.05 |
1028 |
14.2 |
19.5 |
16.3 |
17.1 |
13.6 |
14.2 |
| Rail/ACSS/TW |
954 |
32 |
7 |
0.0971 |
1.06 |
1074 |
16.7 |
30.3 |
19.6 |
20.4 |
16.2 |
16.7 |
| Cardinal/ACSS/TW |
954 |
20 |
7 |
0.1329 |
1.08 |
1227 |
26.0 |
17.5 |
30.9 |
32.3 |
24.6 |
25.5 |
| Snowbird/ACSS/TW |
1033.5 |
30 |
7 |
0.0871 |
1.09 |
1114 |
15.4 |
21.0 |
17.7 |
18.5 |
14.8 |
15.4 |
| Ortolan/ACSS/TW |
1033.5 |
32 |
7 |
1.1010 |
1.10 |
1163 |
18.1 |
33.2 |
21.2 |
22.0 |
17.6 |
18.1 |
| Curlew/ACSS/TW |
1033.5 |
21 |
7 |
0.1383 |
1.13 |
1326 |
28.2 |
18.7 |
33.4 |
35.0 |
26.1 |
27.7 |
| Avocet/ACSS/TW |
1113 |
30 |
7 |
0.0904 |
1.13 |
1199 |
16.3 |
22.5 |
18.8 |
19.5 |
15.9 |
16.3 |
| Bluejay/ACSS/TW |
1113 |
33 |
7 |
0.1049 |
1.14 |
1253 |
19.5 |
35.5 |
22.9 |
23.8 |
18.9 |
19.5 |
| Finch/ACSS/TW |
1113 |
38 |
19 |
0.0862 |
1.19 |
1427 |
30.4 |
33.2 |
36.5 |
38.7 |
28.8 |
30.4 |
| Oxbird/ACSS/TW |
1192.5 |
30 |
7 |
0.0936 |
1.17 |
1285 |
17.5 |
18.7 |
20.2 |
20.9 |
17.0 |
17.5 |
| Bunting/ACSS/TW |
1192.5 |
33 |
7 |
1.1085 |
1.18 |
1342 |
20.9 |
22.5 |
24.5 |
25.5 |
20.3 |
20.9 |
| Grackle/ACSS/TW |
1192.5 |
38 |
19 |
0.0892 |
1.22 |
1529 |
32.6 |
35.5 |
39.1 |
41.5 |
30.8 |
32.6 |
| Scissortail |
1272 |
30 |
7 |
0.0967 |
1.20 |
1371 |
18.7 |
20.0 |
21.5 |
22.3 |
18.2 |
18.7 |
| Bittern/ACSS/TW |
1272 |
35 |
7 |
0.1121 |
1.22 |
1432 |
22.3 |
24.0 |
26.1 |
27.2 |
21.6 |
22.3 |
| Pheasant/ACSS/TW |
1272 |
39 |
19 |
0.0921 |
1.26 |
1630 |
34.1 |
37.3 |
41.1 |
43.0 |
32.8 |
34.1 |
| Dipper/ACSS/TW |
1351 |
35 |
7 |
0.1155 |
1.26 |
1521 |
23.7 |
25.5 |
27.7 |
28.8 |
23.0 |
23.7 |
| Martin/ACSS/TW |
1351 |
39 |
19 |
0.0949 |
1.30 |
1732 |
36.2 |
39.6 |
43.6 |
45.6 |
34.9 |
36.2 |
| Bobolink/ACSS/TW |
1431 |
36 |
7 |
0.1189 |
1.29 |
1611 |
25.1 |
27.0 |
29.4 |
30.5 |
24.3 |
25.1 |
| Plover/ACSS/TW |
1431 |
39 |
19 |
0.0977 |
1.34 |
1834 |
38.4 |
41.9 |
46.2 |
48.3 |
36.9 |
38.4 |
| Lapwing/ACSS/TW |
1590 |
36 |
7 |
0.1253 |
1.36 |
1790 |
27.9 |
29.6 |
32.2 |
33.5 |
27.0 |
27.5 |
| Falcon/ACSS/TW |
1590 |
42 |
19 |
0.1030 |
1.41 |
2038 |
42.6 |
46.6 |
51.3 |
53.8 |
41.1 |
42.6 |
| Chukar/ACSS/TW |
1780 |
37 |
19 |
0.0874 |
1.45 |
2061 |
35.3 |
38.2 |
41.6 |
43.9 |
33.6 |
35.3 |
| Bluebird/ACSS/TW |
2156 |
64 |
19 |
0.0961 |
4.61 |
2512 |
42.1 |
45.5 |
49.6 |
51.7 |
40.7 |
42.1 |
