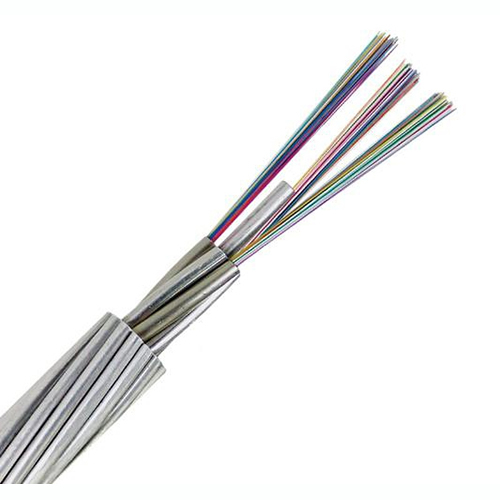

(OPGW) Optical Fiber Ground Wire is used by shield wire in overhead line, can meet the requirements of big number of fibers and UHV transmission lines, provide protection against lightning by transmitting large fault short-circuit current.
Aluminum Alloy, Aluminum Clad Steel, Stainless Steel, Fibers, etc.
IEEE 1138, IEC 61232, 60104, 61089, etc.

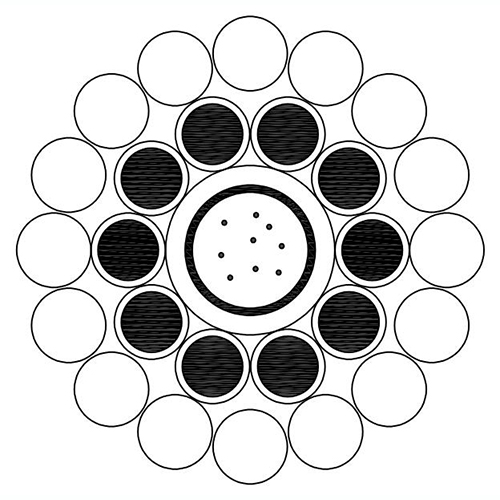

Central Stainless Steel Tube Type OPGW
| Specifications |
Fiber Count |
Diameter |
Weight |
RTS |
Short Circuit |
| mm |
kg/km |
kN |
KA2s |
| OPGW-32[40.6;4.7] |
12 |
7.8 |
243 |
40.6 |
4.7 |
| OPGW-42[54.0;8.4] |
24 |
9.0 |
313 |
54.0 |
8.4 |
| OPGW-42[43.5;10.6] |
24 |
9.0 |
284 |
43.5 |
1.6 |
| OPGW-54[55.9;17.5] |
36 |
10.2 |
394 |
67.8 |
13.9 |
| OPGW-61[73.7;17.5] |
48 |
10.8 |
438 |
73.7 |
17.5 |
| OPGW-61[55.1;24.5] |
48 |
1.8 |
358 |
55.1 |
24.5 |
| OPGW-68[80.8;21.7] |
54 |
11.4 |
485 |
80.8 |
21.7 |
| OPGW-75[54.5;41.7] |
60 |
12.0 |
459 |
63.0 |
36.3 |
| OPGW-76[54.5;41.7] |
60 |
12.0 |
385 |
54.5 |
41.7 |
| OPGW-96[121.7;42.2] |
12 |
13.0 |
671 |
121.7 |
42.2 |
| OPGW-127[141.0;87.9] |
24 |
15.0 |
825 |
141.0 |
87.9 |
| OPGW-127[77.8;128.0] |
24 |
15.0 |
547 |
77.8 |
128.0 |
| OPGW-145[121.0;132.2] |
28 |
16.0 |
857 |
121.0 |
132.2 |
| OPGW-163[138.2;183.6] |
36 |
17.0 |
910 |
138.2 |
186.3 |
| OPGW-163[99.9;213.7] |
36 |
17.0 |
694 |
99.9 |
213.7 |
| OPGW-183[109.7;268.7] |
48 |
18.0 |
775 |
109.7 |
268.7 |
| OPGW-183[118.4;261.6] |
48 |
18.0 |
895 |
118.4 |
261.6 |
Stranded Stainless Steel Tube Type OPGW
| Specifications |
Fiber Count |
Diameter |
Weight |
RTS |
Short Circuit |
| mm |
kg/km |
kN |
KA2s |
| OPGW-89[55.4;62.9] |
24 |
12.6 |
381 |
55.4 |
62.9 |
| OPGW-110[90.0;86.9] |
24 |
14.0 |
600 |
90.0 |
86.9 |
| OPGW-104[64.6;85.6] |
28 |
13.6 |
441 |
64.6 |
85.6 |
| OPGW-127[79.0;129.5] |
36 |
15.0 |
537 |
79.0 |
129.5 |
| OPGW-137[85.0;148.5] |
36 |
15.6 |
575 |
85.0 |
148.5 |
| OPGW-145[98.6;162.3] |
48 |
16.0 |
719 |
98.6 |
162.3 |
| OPGW-232[343.0;191.4] |
28 |
20.15 |
1696 |
343.0 |
191.4 |
| OPGW-254[116.5;554.6] |
36 |
21.0 |
889 |
116.5 |
554.6 |
| OPGW-347[366.9;687.7] |
48 |
24.7 |
2157 |
366.9 |
687.7 |
| OPGW-282[358.7;372.1] |
96 |
22.5 |
1938 |
358.7 |
372.1 |
Central Aluminum Clad Stainless Steel Tube Type OPGW
| Specifications |
Fiber Count |
Diameter |
Weight |
RTS |
Short Circuit |
| mm |
kg/km |
kN |
KA2s |
| OPGW-80[82.3,46.8] |
24 |
11.9 |
504 |
82.3 |
46.8 |
| OPGW-70[54.0,8.4] |
24 |
11.0 |
432 |
70.1 |
33.9 |
| OPGW-80[84.6,46.7] |
48 |
12.1 |
514 |
84.6 |
46.7 |
| OPGW-143[87.9,176.9] |
36 |
15.9 |
617 |
87.9 |
176.9 |
Central Aluminum Clad PBT Tube Type OPGW
| Specifications |
Fiber Count |
Diameter |
Weight |
RTS |
Short Circuit |
| mm |
kg/km |
kN |
KA2s |
| OPGW-113[87.9,176.9] |
48 |
14.8 |
600 |
70.1 |
33.9 |
| OPGW-70[81,41] |
24 |
12.0 |
500 |
81.0 |
41.0 |
| OPGW-66[79,36] |
36 |
11.8 |
484 |
79.0 |
36.0 |
| OPGW-77[72,36] |
36 |
12.7 |
503 |
72.0 |
67.0 |
Central Stainless Steel Tube Type

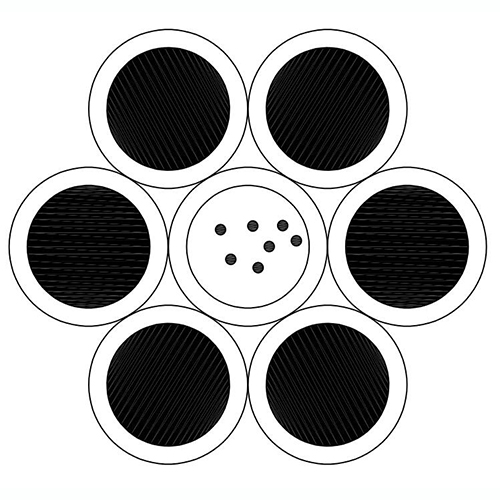

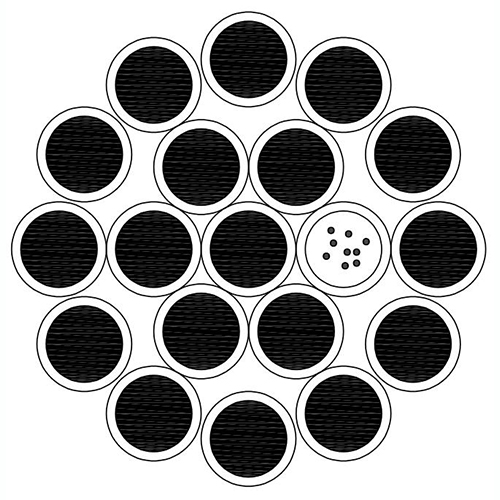

Stranded Stainless Steel Tube Type

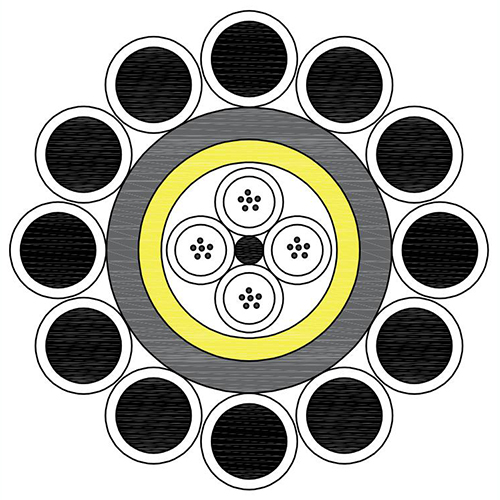

Central AL-Clad Stainless Steel Tube Type
Central AL-Clad PBT Tube Type
