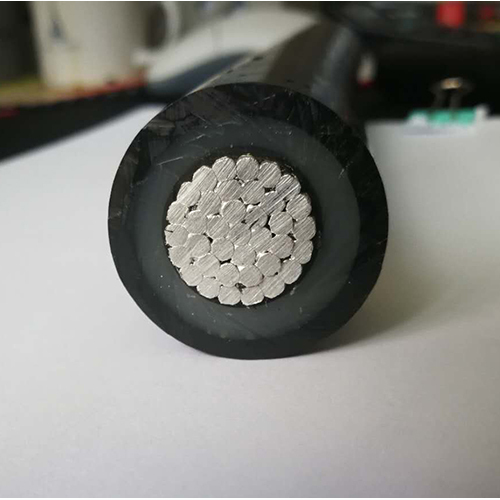

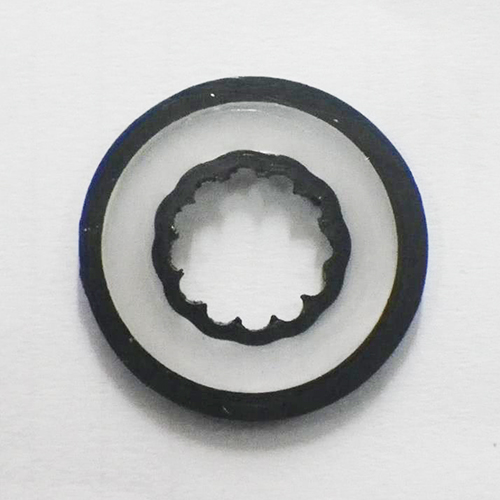

Medium Voltage Insulated Overhead Conductor / Spacer Cable / Tree Wire(up to 35kV)

Description Review

Description

APPLICATION

Medium Voltage Insulated Overhead Conductor / Spacer Cable / Tree Wire(up to 35kV) is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an bare conductor, however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity.

MATERIALS

Aluminum alloy 1350, 6201, ACSR, PE, HDPE, XLPE, HDTRXLPE, etc.

STANDARDS

ASTM B231, B232, B399, ICEA S-121-733, etc.

DATA SHEET

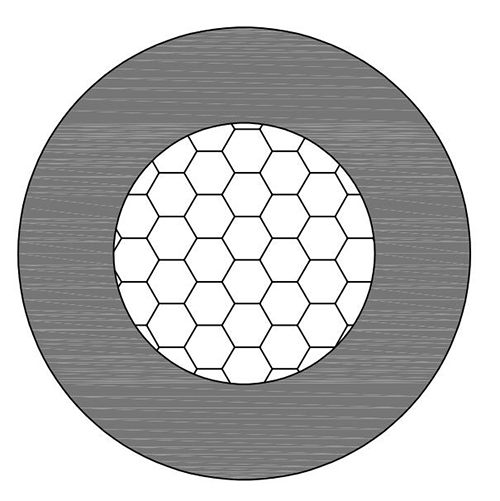

5kV AAC Single Layer

Size	Stranding	Insulation Thickness	Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
AWG/MCM	Nos	inch	inch	lbs/1000ft	lbs
4	7	0.080	0.385	73	792
2	7	0.080	0.443	104	1215
1/0	7	0.080	0.517	147	1791
2/0	7	0.080	0.562	178	2259
3/0	7	0.080	0.610	217	2736
4/0	7	0.080	0.666	265	3447
266.8	7	0.080	0.728	322	4347
266.8	19	0.080	0.734	323	4473
336.4	19	0.080	0.805	397	5535
397.5	19	0.080	0.861	461	6399
477	19	0.080	0.928	544	7524
477	19	0.080	0.931	545	7821

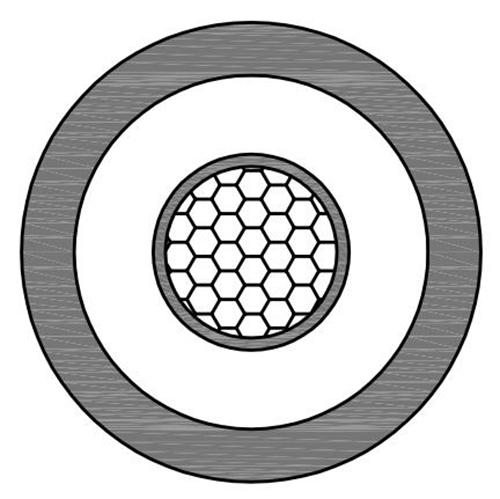

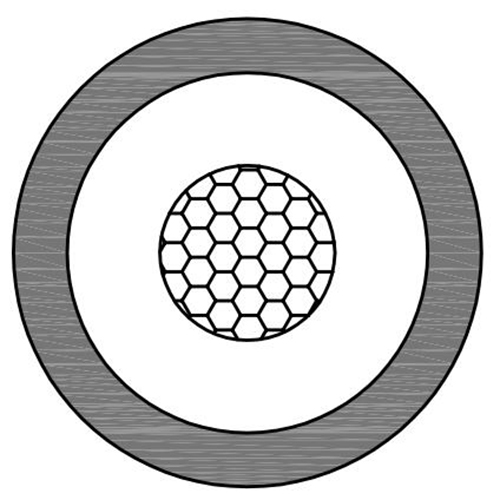

5kV AAC Double Layers

Size	Stranding	Insulation Thickness		Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
Size	Stranding	Inner	Outer	Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
AWG/MCM	Nos	inch	inch	inch	lbs/1000ft	lbs
2	7	0.075	0.075	0.583	149	1215
1/0	7	0.075	0.075	0.657	199	1791
2/0	7	0.075	0.075	0.702	234	2259
3/0	7	0.075	0.075	0.750	277	2736
4/0	7	0.075	0.075	0.806	330	3447
266.8	7	0.075	0.075	0.868	393	4347
266.8	19	0.075	0.075	0.874	395	4473
336.4	19	0.075	0.075	0.945	475	5535
397.5	19	0.075	0.075	1.001	544	6399
477	19	0.075	0.075	1.068	633	7524
477	37	0.075	0.075	1.071	633	7821
556.5	37	0.075	0.075	1.132	721	8946
636	37	0.075	0.075	1.190	806	10260

5kV AAAC Single Layer

Size	Stranding	Insulation Thickness	Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
AWG/MCM	Nos	inch	inch	lbs/1000ft	lbs
4	7	0.080	0.410	83	1584
2	7	0.080	0.476	118	2520
1/0	7	0.080	0.558	168	3852
2/0	7	0.080	0.607	204	4851
3/0	7	0.080	0.662	248	6111
4/0	7	0.080	0.723	304	7704
266.8	19	0.080	0.802	373	9450
336.4	19	0.080	0.880	459	11970
397.5	19	0.080	0.943	533	14040
477	19	0.080	1.018	631	16920

5kV AAAC Double Layers

Size	Stranding	Insulation Thickness		Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
Size	Stranding	Inner	Outer	Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
AWG/MCM	Nos	inch	inch	inch	lbs/1000ft	lbs
4	7	0.075	0.075	0.550	126	1584
2	7	0.075	0.075	0.616	167	2520
1/0	7	0.075	0.075	0.698	224	3852
2/0	7	0.075	0.075	0.747	264	4851
3/0	7	0.075	0.075	0.802	313	6111
4/0	7	0.075	0.075	0.863	374	7704
266.8	19	0.075	0.075	0.942	450	9450
336.4	19	0.075	0.075	1.020	543	11970
397.5	19	0.075	0.075	1.083	623	14040
477	19	0.075	0.075	1.158	727	16920
556.5	19	0.080	0.080	1.227	825	19710
636	37	0.080	0.080	1.290	922	21960
795	37	0.080	0.080	1.408	1121	27450

5kV ACSR Single Layer

Size	Stranding	Insulation Thickness	Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
AWG/MCM	Nos	inch	inch	lbs/1000ft	lbs
2	6/1	0.080	0.476	137	2708
1/0	6/1	0.080	0.558	198	4161
2/0	6/1	0.080	0.607	242	5035
3/0	6/1	0.080	0.662	297	6289
4/0	6/1	0.080	0.723	365	7933
266.8	18/1	0.080	0.769	367	6536
266.8	26/7	0.080	0.802	448	10735
336.4	18/1	0.080	0.844	451	8246
336.4	26/7	0.080	0.880	553	13395
336.4	30/7	0.080	0.901	620	16435
397.5	18/1	0.080	0.903	525	9443
397.5	24/7	0.080	0.932	609	13870
397.5	26/7	0.080	0.943	645	15485
477	18/1	0.080	0.974	620	11210
477	24/7	0.080	1.006	721	16340
477	26/7	0.080	1.018	764	18525
477	30/7	0.080	1.043	858	22610

5kV ACSR Double Layers

Size	Stranding	Insulation Thickness		Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
Size	Stranding	Inner	Outer	Overall Diameter(Approx.)	Unit Weight(Approx.)	Rated Strength
AWG/MCM	Nos	inch	inch	inch	lbs/1000ft	lbs
2	6/1	0.075	0.075	0.616	186	2708
1/0	6/1	0.075	0.075	0.698	254	4161
2/0	6/1	0.075	0.075	0.747	302	5035
3/0	6/1	0.075	0.075	0.802	362	6289
4/0	6/1	0.075	0.075	0.863	435	7933
266.8	18/1	0.075	0.075	0.909	441	6536
266.8	26/7	0.075	0.075	0.942	525	10735
336.4	18/1	0.075	0.075	0.982	532	8246
336.4	26/7	0.075	0.075	1.020	638	13395
336.4	30/7	0.075	0.075	1.041	706	16435
397.5	18/1	0.075	0.075	1.043	611	9443
397.5	24/7	0.075	0.075	1.072	698	13870
397.5	26/7	0.075	0.075	1.083	735	15485
477	18/1	0.075	0.075	1.114	713	11210
477	24/7	0.075	0.075	1.146	816	16340
477	26/7	0.075	0.075	1.158	861	18525
477	30/7	0.075	0.075	1.183	957	22610
556.5	18/1	0.075	0.075	1.179	813	13015
556.5	24/7	0.075	0.075	1.214	933	18810
556.5	26/7	0.075	0.075	1.227	986	21470
636	18/1	0.075	0.075	1.240	910	14915
636	24/7	0.075	0.075	1.277	1046	21470
636	26/7	0.075	0.075	1.290	1105	23940
795	45/7	0.080	0.080	1.383	1159	20995
795	24/7	0.080	0.080	1.412	1294	26505
795	26/7	0.080	0.080	1.427	1367	29925
