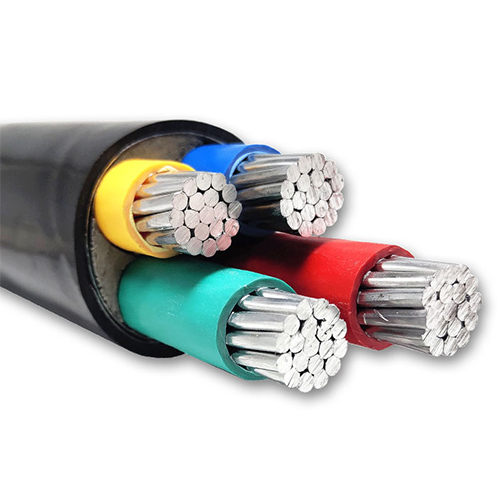

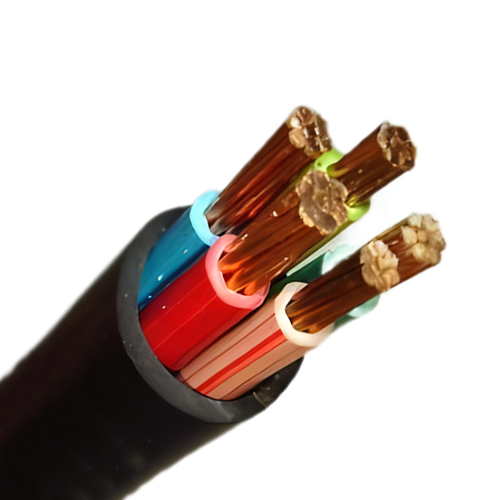

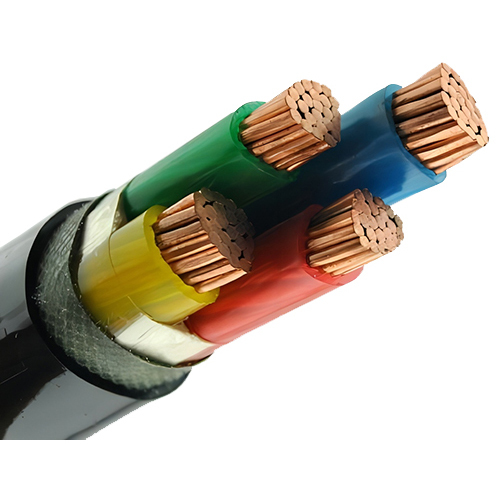

IEC 60502-1 0.6/1kV XLPE Insulation Unarmoured Power Cables

Description Review

Description

APPLICATION

IEC 60502-1 0.6/1kV XLPE Insulation Unarmoured Power Cables.

MATERIALS

Conductor: Copper, Aluminum
Insulation: XLPE
Sheath: PVC, PE

STANDARDS

IEC 60228: Conductors of insulated cables
IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) – Part 1: Cables for rated voltages of 1 kV ((Um = 1,2 kV) and 3 kV (Um = 3,6 kV)

DATA SHEET

Single Core XLPE Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air, parallal)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
2.5	1/7	0.7	1.4	6.0	41	32
4	1/7	0.7	1.4	6.5	54	42
6	1/7	0.7	1.4	7.0	68	56
10	7	0.7	1.4	8.3	93	72
16	7	0.7	1.4	9.3	120	93
25	7	0.9	1.4	10.7	155	120
35	7	0.9	1.4	11.7	195	150
50	7	1.0	1.4	13.1	235	180
70	19	1.1	1.4	15.0	295	230
95	19	1.1	1.5	16.9	370	285
120	19	1.2	1.5	18.5	430	330
150	19	1.4	1.6	20.5	495	380
185	37	1.6	1.6	22.8	570	445
240	37	1.7	1.7	25.6	680	530
300	37	1.8	1.8	28.2	790	615
400	60	2.0	1.9	31.6	920	720
500	60	2.2	2.0	35.2	1080	850
630	60	2.4	2.2	39.6	1260	1000

*Max. conductor working temperature: 90℃, environment temperature: 40℃

Two Cores XLPE Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
2x2.5	1/7	0.7	1.8	10.5	33	25
2x4	1/7	0.7	1.8	11.4	43	34
2x6	1/7	0.7	1.8	12.4	55	45
2x10	7	0.7	1.8	14.9	76	58
2x16	7	0.7	1.8	17.0	97	75
2x25	7	0.9	1.8	19.8	130	100
2x35	7	0.9	1.8	21.8	160	120
2x50	7	1.0	1.8	24.6	195	150
2x70	19	1.1	1.8	28.4	245	190
2x95	19	1.1	2.0	32.2	305	235
2x120	19	1.2	2.1	35.6	355	275
2x150	19	1.4	2.2	39.5	405	315
2x185	37	1.6	2.3	44.1	465	365
2x240	37	1.7	2.5	49.8	-	-
2x300	37	1.8	2.7	55.0	-	-
2x400	60	2.0	2.9	61.8	-	-
2x500	60	2.2	3.1	69.0	-	-
2x630	60	2.4	3.4	77.7	-	-

*Max. conductor working temperature: 90℃, environment temperature: 40℃

Three Cores XLPE Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
3x2.5	1/7	0.7	1.8	11.0	28	22
3x4	1/7	0.7	1.8	12.0	37	29
3x6	1/7	0.7	1.8	13.1	47	39
3x10	7	0.7	1.8	15.8	65	50
3x16	7	0.7	1.8	18.1	84	65
3x25	7	0.9	1.8	21.1	110	87
3x35	7	0.9	1.8	23.2	135	105
3x50	7	1.0	1.8	26.2	170	130
3x70	19	1.1	1.9	30.6	215	165
3x95	19	1.1	2.0	34.5	265	205
3x120	19	1.2	2.1	38.1	310	240
3x150	19	1.4	2.3	42.5	350	270
3x185	37	1.6	2.4	47.4	405	315
3x240	37	1.7	2.6	53.5	480	375
3x300	37	1.8	2.8	59.1	555	435
3x400	60	2.0	3.1	66.6	640	510
3x500	60	2.2	3.3	74.4	-	-
3x630	60	2.4	3.5	83.5	-	-

*Max. conductor working temperature: 90℃, environment temperature: 40℃

Four Cores XLPE Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
4x2.5	1/7	0.7	1.8	11.8	28	22
4x4	1/7	0.7	1.8	13.0	37	29
4x6	1/7	0.7	1.8	14.2	47	39
4x10	7	0.7	1.8	17.2	65	50
4x16	7	0.7	1.8	19.8	84	65
4x25	7	0.9	1.8	23.1	110	87
4x35	7	0.9	1.8	25.5	135	105
4x50	7	1.0	1.9	29.1	170	130
4x70	19	1.1	2.0	34.0	215	165
4x95	19	1.1	2.1	38.3	265	205
4x120	19	1.2	2.3	42.6	310	240
4x150	19	1.4	2.4	47.2	350	270
4x185	37	1.6	2.6	52.9	405	315
4x240	37	1.7	2.8	59.7	480	375
4x300	37	1.8	3.0	65.9	555	435
4x400	60	2.0	3.3	74.3	640	510
4x500	60	2.2	3.5	83.0	-	-
4x630	60	2.4	3.8	93.3	-	-

*Max. conductor working temperature: 90℃, environment temperature: 40℃

Five Cores XLPE Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
5x2.5	1/7	0.7	1.8	12.7	28	22
5x4	1/7	0.7	1.8	14.0	37	29
5x6	1/7	0.7	1.8	15.3	47	39
5x10	7	0.7	1.8	18.8	65	50
5x16	7	0.7	1.8	21.6	84	65
5x25	7	0.9	1.8	25.3	110	87
5x35	7	0.9	1.8	28.0	135	105
5x50	7	1.0	2.0	32.2	170	130
5x70	19	1.1	2.1	37.6	215	165
5x95	19	1.1	2.3	42.6	265	205
5x120	19	1.2	2.4	47.1	310	240
5x150	19	1.4	2.6	52.4	350	270
5x185	37	1.6	2.8	58.8	405	315
5x240	37	1.7	3.0	66.3	480	375
5x300	37	1.8	3.2	73.2	555	435
5x400	60	2.0	3.6	82.7	640	510
5x500	60	2.2	3.8	92.3	-	-
5x630	60	2.4	4.2	103.9	-	-
