IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables
IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables

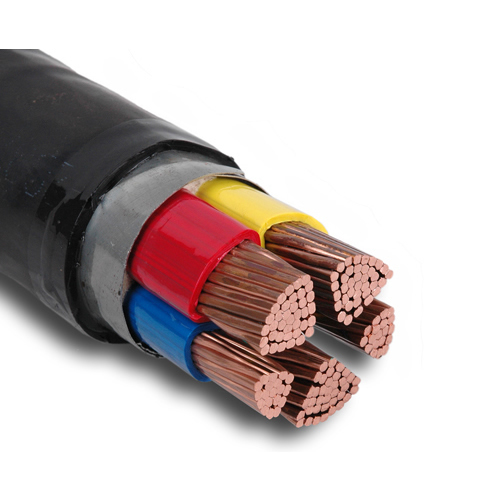

  • IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables

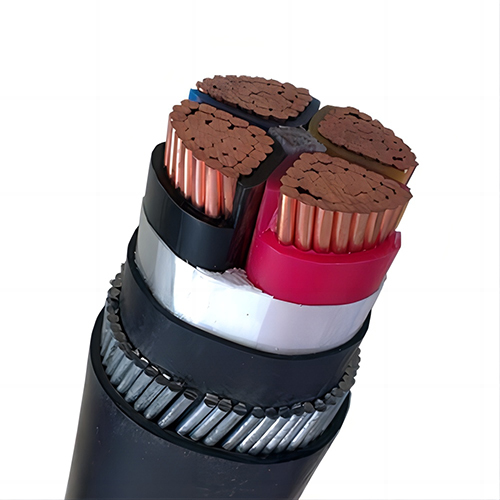

  • IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables

IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables

IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables.
Request Quote PDF Format
Description Review
Description
    APPLICATION
    IEC 60502-1 0.6/1kV XLPE Insulation Armoured Power Cables.
    MATERIALS
    Conductor: Copper, Aluminum
    Insulation: XLPE
    Sheath: PVC, PE
    STANDARDS
    IEC 60228: Conductors of insulated cables
    IEC 60502-1:     Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) – Part 1: Cables for rated voltages of 1 kV ((Um = 1,2 kV) and 3 kV (Um = 3,6 kV)
    DATA SHEET
    Single Core XLPE Insulation Aluminum Tape Armoured(ATA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air, parallel)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2.5 1/7 0.7 2x0.5 1.8 10.8 31 24
    4 1/7 0.7 2x0.5 1.8 11.3 41 32
    6 1/7 0.7 2x0.5 1.8 11.8 51 42
    10 7 0.7 2x0.5 1.8 13.1 69 53
    16 7 0.7 2x0.5 1.8 14.1 88 60
    25 7 0.9 2x0.5 1.8 15.5 115 89
    35 7 0.9 2x0.5 1.8 16.5 140 110
    50 7 1.0 2x0.5 1.8 17.9 170 130
    70 19 1.1 2x0.5 1.8 19.8 210 165
    95 19 1.1 2x0.5 1.8 21.5 260 200
    120 19 1.2 2x0.5 1.8 23.1 300 235
    150 19 1.4 2x0.5 1.8 24.9 345 265
    185 37 1.6 2x0.5 1.8 27.2 400 310
    240 37 1.7 2x0.5 1.9 30.0 475 365
    300 37 1.8 2x0.5 1.9 32.4 550 425
    400 60 2.0 2x0.5 2.1 36.4 640 500
    500 60 2.2 2x0.5 2.2 40.0 750 590
    630 60 2.4 2x0.5 2.3 44.2 875 695
    *Max. conductor working temperature: 90℃, environment temperature: 40℃

    Single Core XLPE Insulation Aluminum Wire Armoured(AWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air, parallel)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2.5 1/7 0.7 1.0 1.8 11.6 31 24
    4 1/7 0.7 1.0 1.8 12.1 41 32
    6 1/7 0.7 1.0 1.8 12.6 51 42
    10 7 0.7 1.0 1.8 13.9 69 53
    16 7 0.7 1.0 1.8 14.9 88 60
    25 7 0.9 1.0 1.8 16.3 115 89
    35 7 0.9 1.25 1.8 17.8 140 110
    50 7 1.0 1.25 1.8 19.2 170 130
    70 19 1.1 1.25 1.8 21.1 210 165
    95 19 1.1 1.6 1.8 23.5 260 200
    120 19 1.2 1.6 1.8 25.1 300 235
    150 19 1.4 1.6 1.8 26.9 345 265
    185 37 1.6 1.6 1.8 29.2 400 310
    240 37 1.7 1.6 1.9 32.0 475 365
    300 37 1.8 2.0 2.0 35.4 550 425
    400 60 2.0 2.0 2.2 39.4 640 500
    500 60 2.2 2.0 2.3 43.0 750 590
    630 60 2.4 2.0 2.4 48.2 875 695
    *Max. conductor working temperature: 90℃, environment temperature: 40℃



    Two Cores XLPE Insulation Steel Tape Armour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2x2.5 1/7 0.7 2x0.2 1.8 13.3 - -
    2x4 1/7 0.7 2x0.2 1.8 14.2 - -
    2x6 1/7 0.7 2x0.2 1.8 15.2 - -
    2x10 7 0.7 2x0.2 1.8 17.7 75 58
    2x16 7 0.7 2x0.2 1.8 19.8 97 75
    2x25 7 0.9 2x0.2 1.8 22.6 125 100
    2x35 7 0.9 2x0.2 1.8 24.6 155 120
    2x50 7 1.0 2x0.2 1.8 27.4 190 145
    2x70 19 1.1 2x0.2 1.9 31.4 245 190
    2x95 19 1.1 2x0.2 2.0 35.4 300 235
    2x120 19 1.2 2x0.5 2.2 40.2 350 270
    2x150 19 1.4 2x0.5 2.3 44.1 400 310
    2x185 37 1.6 2x0.5 2.4 49.1 460 355
    2x240 37 1.7 2x0.5 2.6 54.8 - -
    2x300 37 1.8 2x0.5 2.8 60.4 - -
    2x400 60 2.0 2x0.5 3.0 67.2 - -
    2x500 60 2.2 2x0.5 3.2 74.4 - -
    2x630 60 2.4 2x0.5 3.5 83.5 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃


    Two Cores XLPE Insulation Steel Wire Armour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2x2.5 1/7 0.7 0.8 1.8 14.9 - -
    2x4 1/7 0.7 0.8 1.8 15.8 - -
    2x6 1/7 0.7 1.25 1.8 17.7 - -
    2x10 7 0.7 1.25 1.8 20.2 75 58
    2x16 7 0.7 1.25 1.8 22.3 97 75
    2x25 7 0.9 1.6 1.8 25.8 125 100
    2x35 7 0.9 1.6 1.8 27.8 155 120
    2x50 7 1.0 1.6 1.9 30.8 190 145
    2x70 19 1.1 2.0 2.0 35.6 245 190
    2x95 19 1.1 2.0 2.1 39.6 300 235
    2x120 19 1.2 2.0 2.3 43.2 350 270
    2x150 19 1.4 2.5 2.4 48.1 400 310
    2x185 37 1.6 2.5 2.6 53.3 460 355
    2x240 37 1.7 2.5 2.7 58.8 - -
    2x300 37 1.8 2.5 2.9 64.4 - -
    2x400 60 2.0 2.5 3.1 71.2 - -
    2x500 60 2.2 3.15 3.4 79.9 - -
    2x630 60 2.4 3.15 3.7 89.0 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃


    Three Cores XLPE Insulation Steel Tape Aromour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    3x2.5 1/7 0.7 2x0.2 1.8 13.8 - -
    3x4 1/7 0.7 2x0.2 1.8 14.8 - -
    3x6 1/7 0.7 2x0.2
    		 1.8 15.9 - -
    3x10 7 0.7 2x0.2
    		 1.8 18.6 64 50
    3x16 7 0.7 2x0.2
    		 1.8 20.9 83 64
    3x25 7 0.9 2x0.2
    		 1.8 23.9 110 86
    3x35 7 0.9 2x0.2
    		 1.8 26.0 135 105
    3x50 7 1.0 2x0.2
    		 1.8 29.0 165 125
    3x70 19 1.1 2x0.2 2.0 34.0 210 165
    3x95 19 1.1 2x0.5 2.2 39.3 260 200
    3x120 19 1.2 2x0.5 2.3 42.9 305 235
    3x150 19 1.4 2x0.5 2.4 47.5 345 270
    3x185 37 1.6 2x0.5 2.6 52.6 395 310
    3x240 37 1.7 2x0.5 2.7 58.9 465 365
    3x300 37 1.8 2x0.5 2.9 64.5 535 420
    3x400 60 2.0 2x0.5 3.2 72.0 620 495
    3x500 60 2.2 2x0.5 3.4 80.2 - -
    3x630 60 2.4 2x0.8 3.7 90.7 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃


    Three Cores XLPE Insulation Steel Wire Aromour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    3x2.5 1/7 0.7 0.8 1.8 15.4 - -
    3x4 1/7 0.7 0.8 1.8 16.4 - -
    3x6 1/7 0.7 1.25 1.8 18.4 - -
    3x10 7 0.7 1.25 1.8 21.1 64 50
    3x16 7 0.7 1.25 1.8 23.4 83 64
    3x25 7 0.9 1.6 1.8 27.1 110 86
    3x35 7 0.9 1.6 1.8 29.2 135 105
    3x50 7 1.0 1.6 1.9 32.4 165 125
    3x70 19 1.1 2.0 2.1 38.2 210 165
    3x95 19 1.1 2.0 2.2 42.1 260 200
    3x120 19 1.2 2.0 2.3 45.7 305 235
    3x150 19 1.4 2.5 2.5 51.5 345 270
    3x185 37 1.6 2.5 2.7 56.6 395 310
    3x240 37 1.7 2.5 2.9 63.1 465 365
    3x300 37 1.8 2.5 3.0 68.5 535 420
    3x400 60 2.0 3.15 3.3 77.3 620 495
    3x500 60 2.2 3.15 3.6 85.7 - -
    3x630 60 2.4 3.15 3.8 94.8 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃


    Four Cores XLPE Insulation Steel Tape Armour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    4x2.5 1/7 0.7 2x0.2 1.8 14.6 - -
    4x4 1/7 0.7 2x0.2 1.8 15.8 - -
    4x6 1/7 0.7 2x0.2 1.8 17.0 - -
    4x10 7 0.7 2x0.2 1.8 20.0 64 50
    4x16 7 0.7 2x0.2 1.8 22.6 83 64
    4x25 7 0.9 2x0.2 1.8 25.9 110 86
    4x35 7 0.9 2x0.2 1.8 28.3 135 105
    4x50 7 1.0 2x0.2 1.9 31.9 165 125
    4x70 19 1.1 2x0.2 2.1 37.4 210 165
    4x95 19 1.1 2x0.5 2.3 43.1 260 200
    4x120 19 1.2 2x0.5 2.4 47.6 305 235
    4x150 19 1.4 2x0.5 2.6 52.4 345 270
    4x185 37 1.6 2x0.5 2.7 57.9 395 310
    4x240 37 1.7 2x0.5 2.9 65.1 465 365
    4x300 37 1.8 2x0.5 3.1 71.3 535 420
    4x400 60 2.0 2x0.5 3.4 80.1 620 495
    4x500 60 2.2 2x0.8 3.7 90.2 - -
    4x630 60 2.4 2x0.8 4.0 100.9 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃



    Four Cores XLPE Insulation Steel Wire Armour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    4x2.5 1/7 0.7 0.8 1.8 16.2 - -
    4x4 1/7 0.7 1.25 1.8 18.3 - -
    4x6 1/7 0.7 1.25 1.8 19.5 - -
    4x10 7 0.7 1.25 1.8 22.5 64 50
    4x16 7 0.7 1.6 1.8 25.8 83 64
    4x25 7 0.9 1.6 1.8 29.1 110 86
    4x35 7 0.9 1.6 1.9 31.7 135 105
    4x50 7 1.0 2.0 2.1 36.3 165 125
    4x70 19 1.1 2.0 2.2 41.6 210 165
    4x95 19 1.1 2.0 2.3 45.9 260 200
    4x120 19 1.2 2.5 2.5 51.6 305 235
    4x150 19 1.4 2.5 2.7 56.4 345 270
    4x185 37 1.6 2.5 2.8 61.9 395 310
    4x240 37 1.7 2.5 3.1 69.3 465 365
    4x300 37 1.8 2.5 3.2 75.3 535 420
    4x400 60 2.0 3.15 3.6 85.6 620 495
    4x500 60 2.2 3.15 3.9 94.5 - -
    4x630 60 2.4 3.15 4.2 105.2 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃


    Five Cores XLPE Insulation Steel Tape Armour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    5x2.5 1/7 0.7 2x0.2 1.8 15.5 - -
    5x4 1/7 0.7 2x0.2 1.8 16.8 - -
    5x6 1/7 0.7 2x0.2 1.8 18.1 - -
    5x10 7 0.7 2x0.2 1.8 21.6 64 50
    5x16 7 0.7 2x0.2 1.8 24.4 83 64
    5x25 7 0.9 2x0.2 1.8 28.1 110 86
    5x35 7 0.9 2x0.2 1.9 31.0 135 105
    5x50 7 1.0 2x0.2 2.0 35.4 165 125
    5x70 19 1.1 2x0.5 2.2 42.2 210 165
    5x95 19 1.1 2x0.5 2.4 47.6 260 200
    5x120 19 1.2 2x0.5 2.6 52.3 305 235
    5x150 19 1.4 2x0.5 2.7 57.4 345 270
    5x185 37 1.6 2x0.5 2.9 64.2 395 310
    5x240 37 1.7 2x0.5 3.1 71.7 465 365
    5x300 37 1.8 2x0.5 3.4 79.2 535 420
    5x400 60 2.0 2x0.8 3.7 89.7 620 495
    5x500 60 2.2 2x0.8 4.0 99.5 - -
    5x630 60 2.4 2x0.8 4.3 111.3 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃
    Five Cores XLPE Insulation Steel Wire Armour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    5x2.5 1/7 0.7 1.25 1.8 18.0 - -
    5x4 1/7 0.7 1.25 1.8 19.3 - -
    5x6 1/7 0.7 1.25 1.8 20.6 - -
    5x10 7 0.7 1.6 1.8 24.8 64 50
    5x16 7 0.7 1.6 1.8 27.6 83 64
    5x25 7 0.9 1.6 1.9 31.5 110 86
    5x35 7 0.9 1.6 2.0 34.4 135 105
    5x50 7 1.0 2.0 2.2 39.8 165 125
    5x70 19 1.1 2.0 2.3 45.2 210 165
    5x95 19 1.1 2.5 2.5 51.6 260 200
    5x120 19 1.2 2.5 2.7 56.3 305 235
    5x150 19 1.4 2.5 2.8 61.4 345 270
    5x185 37 1.6 2.5 3.0 68.2 395 310
    5x240 37 1.7 2.5 3.3 75.9 465 365
    5x300 37 1.8 3.15 3.5 84.5 535 420
    5x400 60 2.0 3.15 3.9 94.0 620 495
    5x500 60 2.2 3.15 4.1 103.6 - -
    5x630 60 2.4 3.15 4.5 115.6 - -
    *Max. conductor working temperature: 90℃, environment temperature: 40℃
    CONSTRUCTION / DRAWING

    Single Core ATA Two Cores STA Three Cores STA Four Cores STA Five Cores STA
    Single Core AWA Two Cores SWA Three Cores SWA Four Cores SWA Five Cores SWA














    Review
    Review
    ver_code
    1/3
    X
    Send your message to us
    please select your country
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei Darussalam
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cambodia
    • Cameroon
    • Canada
    • Cape Verde
    • Caribbean Netherlands
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • China
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Congo
    • Cook Islands
    • Costa Rica
    • Cote D'ivoire
    • Cuba
    • Curaçao
    • Cyprus
    • Czech Republic
    • Democratic People's Republic of Korea
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • East Timor
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and Mcdonald Islands
    • Honduras
    • Hong Kong, China
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Jamaica
    • Japan
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Korea
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Macau, China
    • Macedonia
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestine
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn Islands
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthélemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and The South Sandwich Islands
    • Spain
    • Sri Lanka
    • State of Libya
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Swaziland
    • Sweden
    • Switzerland
    • Syrian Arab Republic
    • TaiWan, China
    • Tajikistan
    • Tanzania
    • Thailand
    • The Republic of Croatia
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • US Virgin Islands
    • Uzbekistan
    • Vanuatu
    • Vatican City State
    • Venezuela
    • Vietnam
    • Wallis and Futuna Islands
    • Western Sahara
    • Western Samoa
    • Yemen
    • Zambia
    • Zimbabwe
    ver_code
    Email
    Wechat
    Wechat
    Whatsapp
