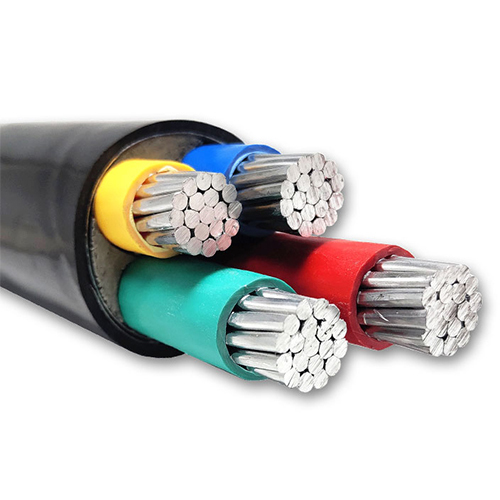

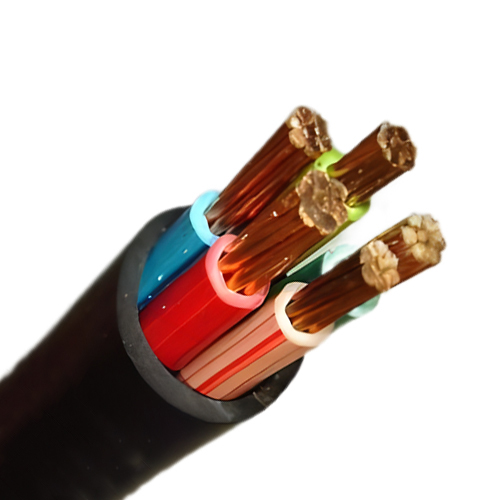

IEC 60502-1 0.6/1kV PVC Insulation Unarmoured Power Cables

Description Review

Description

APPLICATION

IEC 60502-1 0.6/1kV PVC Insulation Unarmoured Power Cables.

MATERIALS

Conductor: Copper, Aluminum
Insulation: PVC
Sheath: PVC, PE

STANDARDS

IEC 60228: Conductors of insulated cables
IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) – Part 1: Cables for rated voltages of 1 kV ((Um = 1,2 kV) and 3 kV (Um = 3,6 kV)

DATA SHEET

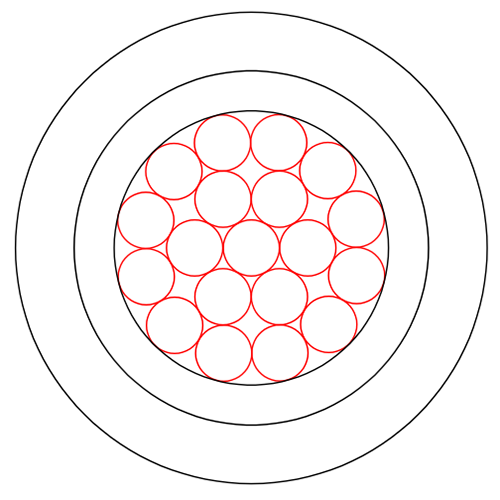

Single Core PVC Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air, parallel)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
2.5	1/7	0.8	1.4	6.2	31	24
4	1/7	1.0	1.4	7.1	41	32
6	1/7	1.0	1.4	7.6	52	43
10	7	1.0	1.4	8.9	70	55
16	7	1.0	1.4	9.9	97	75
25	7	1.2	1.4	11.3	120	96
35	7	1.2	1.4	12.3	150	115
50	7	1.4	1.4	13.9	180	140
70	19	1.4	1.4	15.6	230	180
95	19	1.6	1.5	18.0	280	215
120	19	1.6	1.5	19.4	325	255
150	19	1.8	1.6	21.4	375	290
185	37	2.0	1.7	23.8	430	335
240	37	2.2	1.8	26.8	515	400
300	37	2.4	1.9	29.6	595	465
400	60	2.6	2.0	33.1	700	550
500	60	2.8	2.1	36.7	810	640
630	60	2.8	2.2	40.5	950	760
800	88	2.8	2.4	44.6	1090	880
1000	91	3.0	2.7	54.4	-	1010

*Max. conductor working temperature: 70℃, environment temperature: 40℃

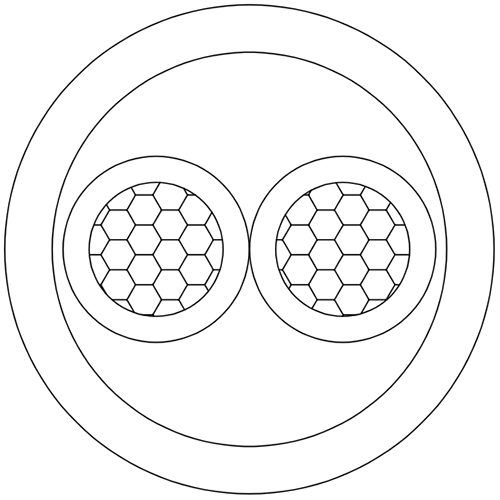

Two Cores PVC Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
2x2.5	1/7	0.8	1.8	10.9	25	19
2x4	1/7	1.0	1.8	12.6	33	26
2x6	1/7	1.0	1.8	13.6	42	34
2x10	7	1.0	1.8	16.2	58	44
2x16	7	1.0	1.8	18.3	76	59
2x25	7	1.2	1.8	21.0	98	76
2x35	7	1.2	1.8	23.0	120	93
2x50	7	1.4	1.8	26.3	145	115
2x70	19	1.4	1.9	29.9	185	145
2x95	19	1.6	2.0	34.3	230	170
2x120	19	1.6	2.1	37.3	265	205
2x150	19	1.8	2.2	41.2	305	235
2x185	37	2.0	2.4	46.0	350	275
2x240	37	2.2	2.6	52.0	-	-
2x300	37	2.4	2.7	57.5	-	-
2x400	60	2.6	3.0	64.5	-	-
2x500	60	2.8	3.2	71.8	-	-
2x630	60	2.8	3.4	79.4	-	-

*Max. conductor working temperature: 70℃, environment temperature: 40℃

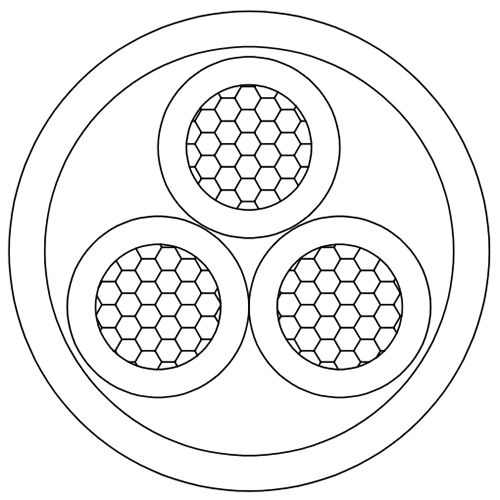

Three Cores PVC Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
3x2.5	1/7	0.8	1.8	10.9	21	17
3x4	1/7	1.0	1.8	12.6	28	22
3x6	1/7	1.0	1.8	13.6	36	29
3x10	7	1.0	1.8	16.2	49	38
3x16	7	1.0	1.8	18.3	66	51
3x25	7	1.2	1.8	21.0	84	65
3x35	7	1.2	1.8	23.0	100	80
3x50	7	1.4	1.8	26.3	125	98
3x70	19	1.4	2.0	30.1	160	120
3x95	19	1.6	2.1	34.5	195	150
3x120	19	1.6	2.2	37.5	235	180
3x150	19	1.8	2.3	41.4	260	200
3x185	37	2.0	2.5	46.2	305	235
3x240	37	2.2	2.7	52.2	360	280
3x300	37	2.4	2.9	57.9	410	320
3x400	60	2.6	3.1	64.7	485	380
3x500	60	2.8	3.4	72.2	-	-
3x630	60	2.8	3.6	79.8	-	-

*Max. conductor working temperature: 70℃, environment temperature: 40℃

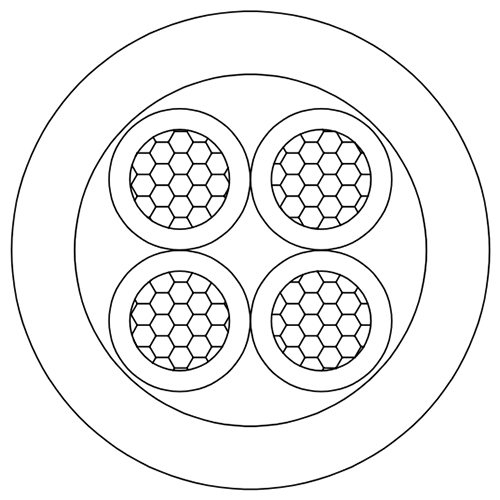

Four Cores PVC Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
4x2.5	1/7	0.8	1.8	12.3	21	17
4x4	1/7	1.0	1.8	14.5	28	22
4x6	1/7	1.0	1.8	15.7	36	29
4x10	7	1.0	1.8	18.7	49	38
4x16	7	1.0	1.8	21.3	66	51
4x25	7	1.2	1.8	24.6	84	65
4x35	7	1.2	1.8	27.0	100	80
4x50	7	1.4	1.9	31.2	125	968
4x70	19	1.4	2.1	35.7	160	120
4x95	19	1.6	2.2	41.0	195	150
4x120	19	1.6	2.4	44.8	235	180
4x150	19	1.8	2.5	49.4	260	200
4x185	37	2.0	2.7	55.2	305	235
4x240	37	2.2	2.9	62.4	360	280
4x300	37	2.4	3.1	69.1	410	320
4x400	60	2.6	3.4	77.5	485	380
4x500	60	2.8	3.6	86.2	-	-
4x630	60	2.8	3.9	95.5	-	-

*Max. conductor working temperature: 70℃, environment temperature: 40℃

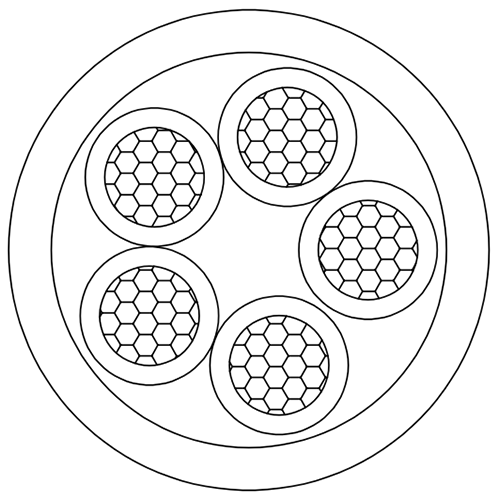

Five Cores PVC Insulation PVC/PE Sheath Cable

Conductor		Insulation	Sheath	Complete Cable	Amapcity* (In air)
Section	Stranding	Thickness	Thickness	Diameter	Copper	Aluminum
mm2	Nos	mm	mm	mm	A	A
5x2.5	1/7	0.8	1.8	13.3	21	17
5x4	1/7	1.0	1.8	15.7	28	22
5x6	1/7	1.0	1.8	17.0	36	29
5x10	7	1.0	1.8	20.4	49	38
5x16	7	1.0	1.8	23.3	66	51
5x25	7	1.2	1.8	27.0	84	65
5x35	7	1.2	1.9	29.9	100	80
5x50	7	1.4	2.1	34.7	125	98
5x70	19	1.4	2.2	39.5	160	120
5x95	19	1.6	2.4	45.6	195	150
5x120	19	1.6	2.5	49.6	235	180
5x150	19	1.8	2.7	54.9	260	200
5x185	37	2.0	2.9	61.3	305	235
5x240	37	2.2	3.1	69.3	360	280
5x300	37	2.4	3.3	76.8	410	320
5x400	60	2.6	3.7	86.3	485	380
5x500	60	2.8	4.0	96.1	-	-
5x630	60	2.8	4.2	106.2	-	-
