IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables
IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables

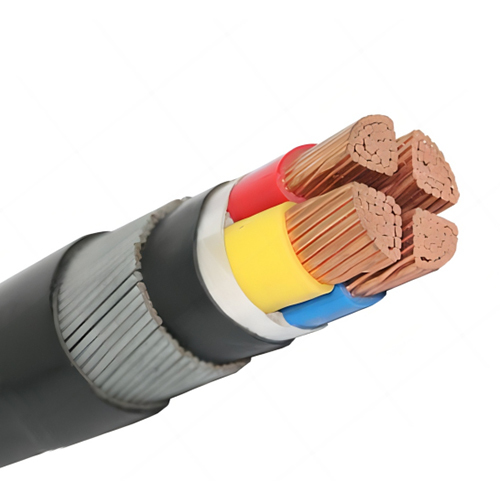

  • IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables

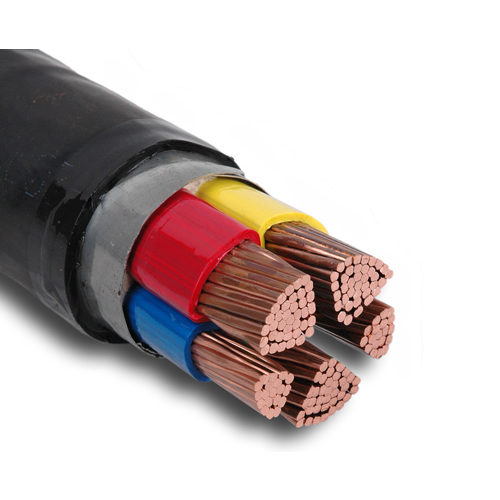

  • IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables

IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables

IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables
Request Quote PDF Format
Description Review
Description
    APPLICATION
    IEC 60502-1 0.6/1kV PVC Insulation Armoured Power Cables.
    MATERIALS
    Conductor: Copper, Aluminum
    Insulation: PVC
    Sheath: PVC, PE
    STANDARDS
    IEC 60228: Conductors of insulated cables
    IEC 60502-1:     Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) – Part 1: Cables for rated voltages of 1 kV ((Um = 1,2 kV) and 3 kV (Um = 3,6 kV)
    DATA SHEET
    Single Core PVC Insulation Aluminum Tape Armoured(ATA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air, parallel)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2.5 1/7 0.8 2x0.5 1.8 11.0 - -
    4 1/7 1.0 2x0.5 1.8 11.9 - -
    6 1/7 1.0 2x0.5 1.8 12.4 - -
    10 7 1.0 2x0.5 1.8 13.7 62 47
    16 7 1.0 2x0.5 1.8 14.7 81 63
    25 7 1.2 2x0.5 1.8 16.1 100 80
    35 7 1.2 2x0.5 1.8 17.1 120 96
    50 7 1.4 2x0.5 1.8 18.7 145 115
    70 19 1.4 2x0.5 1.8 20.4 180 140
    95 19 1.6 2x0.5 1.8 22.6 220 170
    120 19 1.6 2x0.5 1.8 24.0 250 195
    150 19 1.8 2x0.5 1.8 25.8 285 220
    185 37 2.0 2x0.5 1.8 28.0 325 250
    240 37 2.2 2x0.5 1.9 31.0 380 295
    300 37 2.4 2x0.5 2.0 33.8 430 335
    400 60 2.6 2x0.5 2.1 37.7 500 390
    500 60 2.8 2x0.5 2.2 41.3 570 450
    630 60 2.8 2x0.5 2.3 45.1 655 525
    *Max. conductor working temperature: 70℃, environment temperature: 25℃

    Single Core PVC Insulation Aluminum Wire Armoured(AWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air, parallel)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2.5 1/7 0.8 1.0 1.8 11.8 - -
    4 1/7 1.0 1.0 1.8 12.7 - -
    6 1/7 1.0 1.0 1.8 13.2 - -
    10 7 1.0 1.0 1.8 14.5 62 47
    16 7 1.0 1.0 1.8 15.5 81 63
    25 7 1.2 1.0 1.8 16.9 100 80
    35 7 1.2 1.25 1.8 18.4 120 96
    50 7 1.4 1.25 1.8 20.0 145 115
    70 19 1.4 1.25 1.8 21.7 180 140
    95 19 1.6 1.6 1.8 24.6 220 170
    120 19 1.6 1.6 1.8 26.0 250 195
    150 19 1.8 1.6 1.8 27.8 285 220
    185 37 2.0 1.6 1.9 30.2 325 250
    240 37 2.2 1.6 1.9 33.0 380 295
    300 37 2.4 2.0 2.1 36.8 430 335
    400 60 2.6 2.0 2.2 40.7 500 390
    500 60 2.8 2.0 2.3 44.3 570 450
    630 60 2.8 2.5 2.4 49.1 655 525
    *Max. conductor working temperature: 70℃, environment temperature: 25℃



    Two Cores PVC Insulation Steel Tape Armour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2x2.5 1/7 0.8 2x0.2 1.8 13.7 - -
    2x4 1/7 1.0 2x0.2 1.8 15.4 - -
    2x6 1/7 1.0 2x0.2 1.8
    		 16.4 - -
    2x10 7 1.0 2x0.2 1.8
    		 19.0 50 38
    2x16 7 1.0 2x0.2 1.8
    		 21.1 66 51
    2x25 7 1.2 2x0.2 1.8
    		 23.8 85 66
    2x35 7 1.2 2x0.2 1.8
    		 25.8 105 81
    2x50 7 1.4 2x0.2 1.8
    		 29.1 125 98
    2x70 19 1.4 2x0.2 1.9 32.7 160 120
    2x95 19 1.6 2x0.5 2.1 38.9 195 150
    2x120 19 1.6 2x0.5 2.2 41.9 235 180
    2x150 19 1.8 2x0.5 2.4 46.0 265 205
    2x185 37 2.0 2x0.5 2.5 51.0 300 235
    2x240 37 2.2 2x0.5 2.7 57.0 355 280
    2x300 37 2.4 2x0.5 2.9 63.1 410 320
    2x400 60 2.6 2x0.5 3.1 69.9 480 380
    2x500 60 2.8 2x0.5 3.3 77.6 - -
    2x630 60 2.8 2x0.8 3.6 86.6 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃


    Two Cores PVC Insulation Steel Wire Armour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    2x2.5 1/7 0.8 0.8 1.8 15.8 - -
    2x4 1/7 1.0 1.25 1.8 18.5 - -
    2x6 1/7 1.0 1.25 1.8
    		 19.7 - -
    2x10 7 1.0 1.25 1.8
    		 21.5 50 38
    2x16 7 1.0 1.25 1.8
    		 23.6 66 51
    2x25 7 1.2 1.6 1.8
    		 27.0 85 66
    2x35 7 1.2 1.6 1.8
    		 29.0 105 81
    2x50 7 1.4 1.6 1.9 32.5 125 98
    2x70 19 1.4 2.0 2.1 37.1 160 120
    2x95 19 1.6 2.0 2.2 41.9 195 150
    2x120 19 1.6 2.0 2.3 44.9 235 180
    2x150 19 1.8 2.5 2.5 50.0 265 205
    2x185 37 2.0 2.5 2.6 55.0 300 235
    2x240 37 2.2 2.5 2.8 61.0 355 280
    2x300 37 2.4 2.5 3.0 67.1 410 320
    2x400 60 2.6 2.5 3.2 73.9 480 380
    2x500 60 2.8 3.15 3.5 83.1 - -
    2x630 60 2.8 3.15 3.7 90.7 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃


    Three Cores PVC Insulation Steel Tape Aromour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    3x2.5 1/7 0.8 2x0.2 1.8 14.2 - -
    3x4 1/7 1.0 2x0.2 1.8 16.1 - -
    3x6 1/7 1.0 2x0.2
    		 1.8 17.2 - -
    3x10 7 1.0 2x0.2
    		 1.8 20.0 50 38
    3x16 7 1.0 2x0.2
    		 1.8 22.2 66 51
    3x25 7 1.2 2x0.2
    		 1.8 25.2 85 66
    3x35 7 1.2 2x0.2
    		 1.8 27.4 105 81
    3x50 7 1.4 2x0.2
    		 1.9 31.1 125 98
    3x70 19 1.4 2x0.2 2.0 35.3 160 120
    3x95 19 1.6 2x0.5 2.2 41.5 195 150
    3x120 19 1.6 2x0.5 2.3 44.7 235 180
    3x150 19 1.8 2x0.5 2.5 49.5 265 205
    3x185 37 2.0 2x0.5 2.6 54.5 300 235
    3x240 37 2.2 2x0.5 2.8 61.4 355 280
    3x300 37 2.4 2x0.5 3.0 67.4 410 320
    3x400 60 2.6 2x0.5 3.3 75.4 480 380
    3x500 60 2.8 2x0.5 3.5 83.2 - -
    3x630 60 2.8 2x0.8 3.8 92.7 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃


    Three Cores PVC Insulation Steel Wire Aromour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    3x2.5 1/7 0.8 0.8 1.8 15.8 - -
    3x4 1/7 1.0 1.25 1.8 18.6 - -
    3x6 1/7 1.0 1.25 1.8 19.7 - -
    3x10 7 1.0 1.25 1.8 22.5 50 38
    3x16 7 1.0 1.6 1.8 25.4 66 51
    3x25 7 1.2 1.6 1.8 28.4 85 66
    3x35 7 1.2 1.6 1.9 30.8 105 81
    3x50 7 1.4 2.0 2.0 35.3 125 98
    3x70 19 1.4 2.0 2.1 39.5 160 120
    3x95 19 1.6 2.0 2.3 44.5 195 150
    3x120 19 1.6 2.5 2.4 48.7 235 180
    3x150 19 1.8 2.5 2.6 53.5 265 205
    3x185 37 2.0 2.5 2.7 58.5 300 235
    3x240 37 2.2 2.5 2.9 65.4 355 280
    3x300 37 2.4 2.5 3.1 71.4 410 320
    3x400 60 2.6 3.15 3.4 80.7 480 380
    3x500 60 2.8 3.15 3.7 88.7 - -
    3x630 60 2.8 3.15 3.9 96.8 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃


    Four Cores PVC Insulation Steel Tape Armour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    4x2.5 1/7 0.8 2x0.2 1.8 15.1 - -
    4x4 1/7 1.0 2x0.2 1.8 17.3 - -
    4x6 1/7 1.0 2x0.2 1.8 18.5 - -
    4x10 7 1.0 2x0.2 1.8 21.5 50 38
    4x16 7 1.0 2x0.2 1.8 24.1 66 51
    4x25 7 1.2 2x0.2 1.8 27.4 85 66
    4x35 7 1.2 2x0.2 1.9 30.0 105 81
    4x50 7 1.4 2x0.2 2.0 34.6 125 98
    4x70 19 1.4 2x0.5 2.2 40.3 160 120
    4x95 19 1.6 2x0.5 2.4 45.8 195 150
    4x120 19 1.6 2x0.5 2.5 49.8 235 180
    4x150 19 1.8 2x0.5 2.6 54.4 265 205
    4x185 37 2.0 2x0.5 2.8 60.6 300 235
    4x240 37 2.2 2x0.5 3.0 67.8 355 280
    4x300 37 2.4 2x0.5 3.2 74.5 410 320
    4x400 60 2.6 2x0.8 3.6 84.7 480 380
    4x500 60 2.8 2x0.8 3.8 93.4 - -
    4x630 60 2.8 2x0.8 4.1 103.1 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃



    Four Cores PVC Insulation Steel Wire Armour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    4x2.5 1/7 0.8 1.25 1.8 17.6 - -
    4x4 1/7 1.0 1.25 1.8 19.8 - -
    4x6 1/7 1.0 1.25 1.8 21.0 - -
    4x10 7 1.0 1.6 1.8 24.7 50 38
    4x16 7 1.0 1.6 1.8 27.3 66 51
    4x25 7 1.2 1.6 1.9 30.8 85 66
    4x35 7 1.2 1.6 2.0 33.4 105 81
    4x50 7 1.4 2.0 2.1 38.8 125 98
    4x70 19 1.4 2.0 2.3 43.3 160 120
    4x95 19 1.6 2.5 2.5 49.8 195 150
    4x120 19 1.6 2.5 2.6 53.8 235 180
    4x150 19 1.8 2.5 2.7 58.4 265 205
    4x185 37 2.0 2.5 2.9 64.6 300 235
    4x240 37 2.2 2.5 3.1 71.8 355 280
    4x300 37 2.4 3.15 3.4 80.0 410 320
    4x400 60 2.6 3.15 3.7 88.8 480 380
    4x500 60 2.8 3.15 4.0 97.7 - -
    4x630 60 2.8 3.15 4.2 107.2 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃


    Five Cores PVC Insulation Steel Tape Armour(STA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    5x2.5 1/7 0.8 2x0.2 1.8 16.1 - -
    5x4 1/7 1.0 2x0.2 1.8 18.5 - -
    5x6 1/7 1.0 2x0.2 1.8 19.8 - -
    5x10 7 1.0 2x0.2 1.8 23.2 50 38
    5x16 7 1.0 2x0.2 1.8 26.1 66 51
    5x25 7 1.2 2x0.2 1.8 29.8 85 66
    5x35 7 1.2 2x0.2 2.0 32.9 105 81
    5x50 7 1.4 2x0.5 2.2 39.3 125 98
    5x70 19 1.4 2x0.5 2.3 44.1 160 120
    5x95 19 1.6 2x0.5 2.5 50.6 195 150
    5x120 19 1.6 2x0.5 2.6 54.6 235 180
    5x150 19 1.8 2x0.5 2.8 60.3 265 205
    5x185 37 2.0 2x0.5 3.0 66.7 300 235
    5x240 37 2.2 2x0.5 3.2 74.7 355 280
    5x300 37 2.4 2x0.5 3.5 82.8 410 320
    5x400 60 2.6 2x0.8 3.8 93.3 480 380
    5x500 60 2.8 2x0.8 4.1 103.5 - -
    5x630 60 2.8 2x0.8 4.4 113.8 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃
    Five Cores PVC Insulation Steel Wire Armour(SWA) PVC/PE Sheath Cable
    Conductor Insulation Armour Sheath Complete
    Cable    		 Amapcity*
    (In air)
    Section Stranding Thickness Thickness Thickness Diameter Copper Aluminum
    mm2 Nos mm mm mm mm A A
    5x2.5 1/7 0.8 1.25 1.8 18.6 - -
    5x4 1/7 1.0 1.25 1.8 21.0 - -
    5x6 1/7 1.0 1.25 1.8 2.3 - -
    5x10 7 1.0 1.6 1.8 26.4 50 38
    5x16 7 1.0 1.6 1.8 29.3 66 51
    5x25 7 1.2 1.6 1.9 33.2 85 66
    5x35 7 1.2 2.0 2.1 37.1 105 81
    5x50 7 1.4 2.0 2.2 42.1 125 98
    5x70 19 1.4 2.5 2.4 48.1 160 120
    5x95 19 1.6 2.5 2.6 54.6 195 150
    5x120 19 1.6 2.5 2.7 58.6 235 180
    5x150 19 1.8 2.5 2.9 64.3 265 205
    5x185 37 2.0 2.5 3.1 70.7 300 235
    5x240 37 2.2 3.15 3.4 80.2 355 280
    5x300 37 2.4 3.15 3.6 88.1 410 320
    5x400 60 2.6 3.15 4.0 97.6 480 380
    5x500 60 2.8 3.15 4.3 107.8 - -
    5x630 60 2.8 3.15 4.6 118.1 - -
    *Max. conductor working temperature: 70℃, environment temperature: 40℃-
    CONSTRUCTION / DRAWING

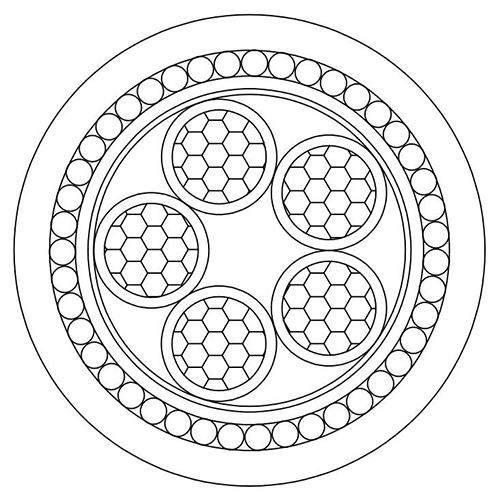

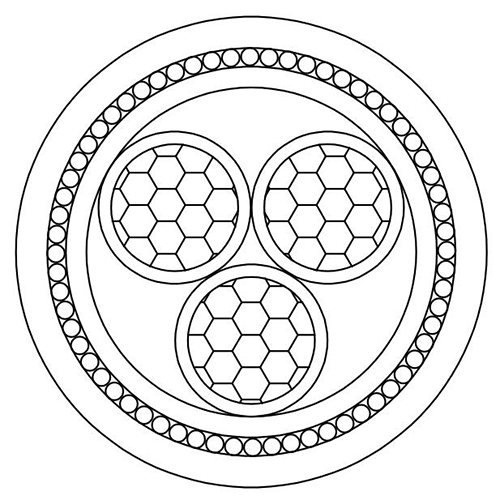

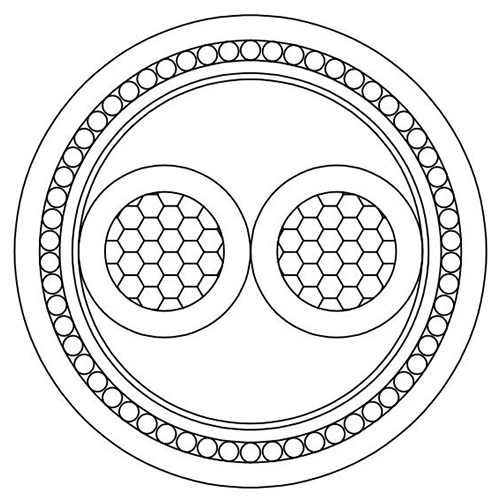

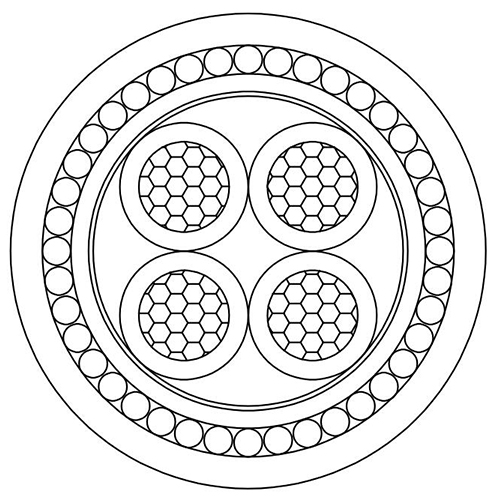

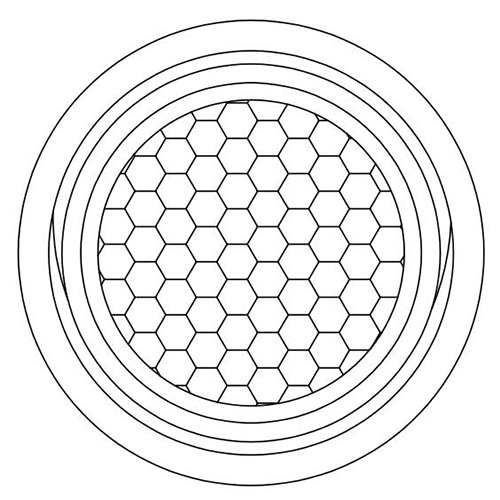

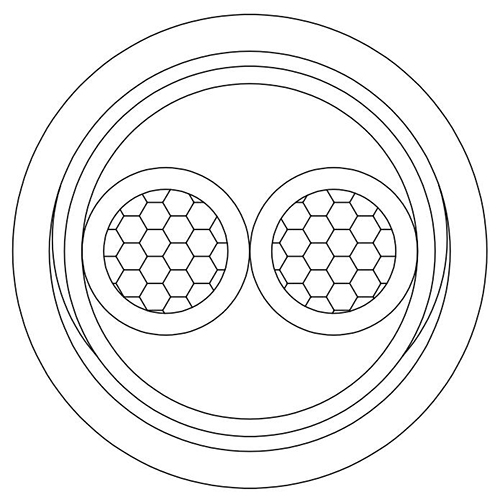

    Single Core ATA Two Cores STA Three Cores STA Four Cores STA Five Cores STA

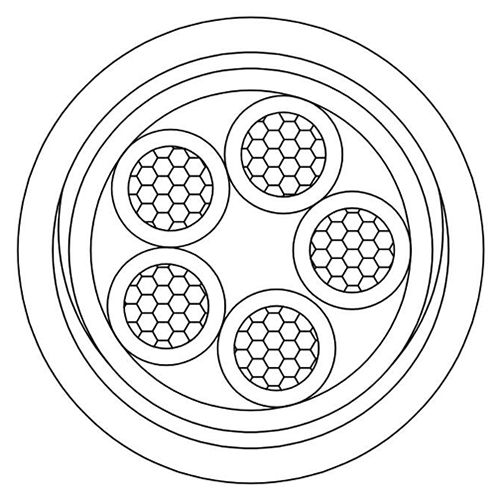

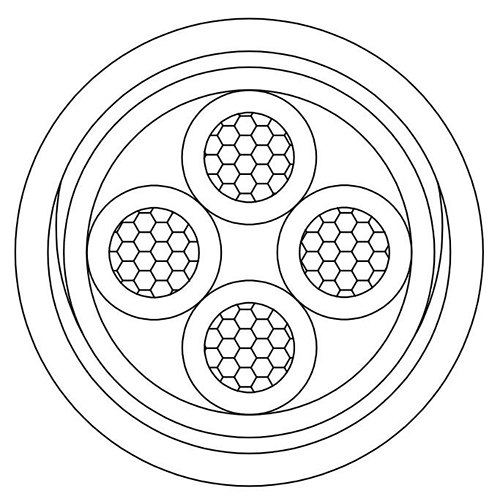

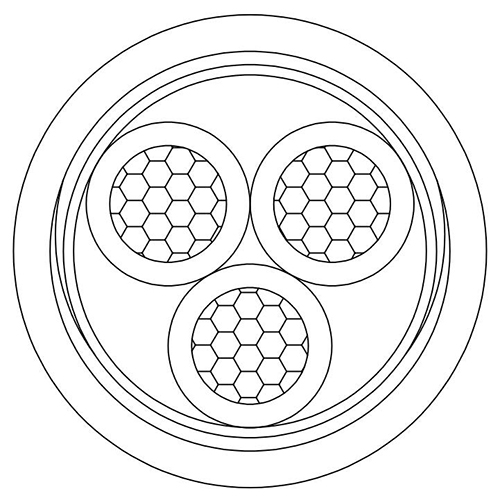

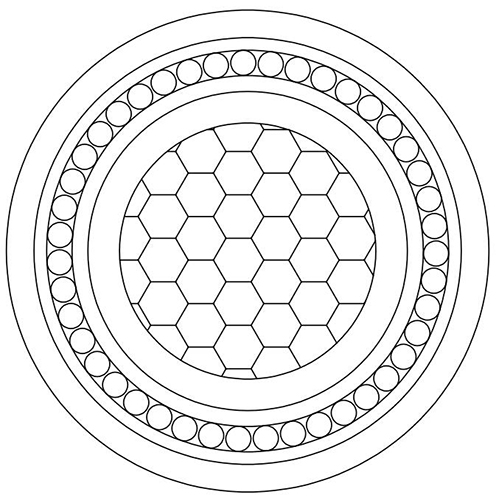

    Single Core AWA Two Cores SWA Three Cores SWA Four Cores SWA Five Cores SWA














    Review
    Review
    ver_code
    1/3
    X
    Send your message to us
    please select your country
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei Darussalam
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cambodia
    • Cameroon
    • Canada
    • Cape Verde
    • Caribbean Netherlands
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • China
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Congo
    • Cook Islands
    • Costa Rica
    • Cote D'ivoire
    • Cuba
    • Curaçao
    • Cyprus
    • Czech Republic
    • Democratic People's Republic of Korea
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • East Timor
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and Mcdonald Islands
    • Honduras
    • Hong Kong, China
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Jamaica
    • Japan
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Korea
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Macau, China
    • Macedonia
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestine
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn Islands
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthélemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and The South Sandwich Islands
    • Spain
    • Sri Lanka
    • State of Libya
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Swaziland
    • Sweden
    • Switzerland
    • Syrian Arab Republic
    • TaiWan, China
    • Tajikistan
    • Tanzania
    • Thailand
    • The Republic of Croatia
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • US Virgin Islands
    • Uzbekistan
    • Vanuatu
    • Vatican City State
    • Venezuela
    • Vietnam
    • Wallis and Futuna Islands
    • Western Sahara
    • Western Samoa
    • Yemen
    • Zambia
    • Zimbabwe
    ver_code
    Email
    Wechat
    Wechat
    Whatsapp
