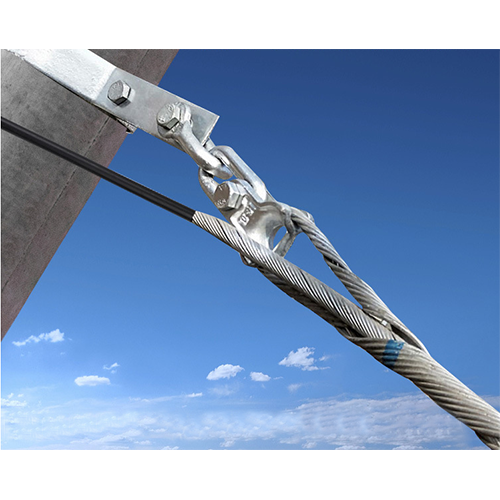

Used for connection at corner, terminal and joint, protect and damping of overhead conductor / cable, AAC, AAAC, ACSR, OPGW, ADSS, etc.

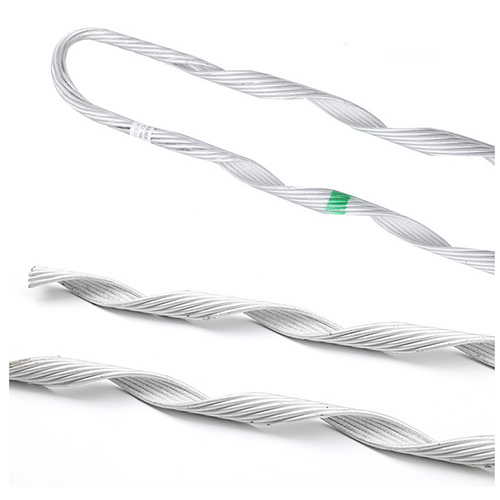

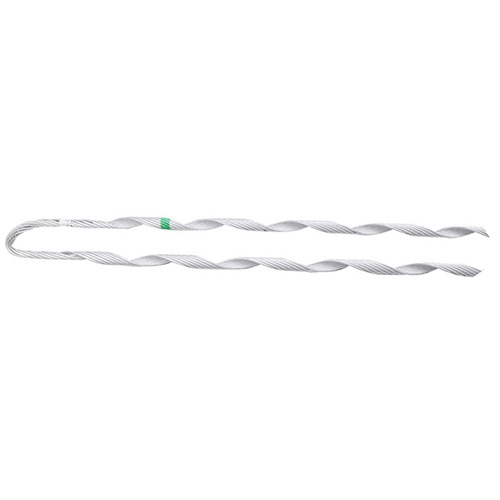

Aluminum clad steel or galvanized round steel wires.
High tension and grip strength, with inner armor wires, no hurt on conductor / cable, no stress concentration point.
For ACSR
| Mode |
Suitable Diameter Scope(mm) |
ACSR Section(mm2) |
Length(mm) |
Weight(kg) |
|
| DN-1112 |
φ7.35-8.26 |
35 |
625 |
0.2 |
| DN-1114 |
φ9.26-10.39 |
50 |
685 |
0.24 |
| DN-1115 |
φ10.40-12.28 |
50-70 |
740 |
0.3 |
| DN-1117 |
φ12.23-14.66 |
70-95 |
880 |
0.6 |
| DN-1118 |
φ14.67-16.59 |
120 |
890 |
0.8 |
| DN-1119 |
φ16.60-18.77 |
150 |
1020 |
1.1 |
| DN-1120 |
φ18.78-21.26 |
185-210 |
1160 |
1.7 |
| DN-1121 |
φ21.27-24.05 |
240-300 |
1275 |
2.3 |
| DN-1122 |
φ24.05-27.02 |
300-400 |
1425 |
3.0 |
For AAC/AAAC
| Mode |
Suitable Diameter Scope(mm) |
AAC/AAAC Section(mm2) |
Length(mm) |
Weight(kg) |
|
| DL-1110 |
φ4.62-5.16 |
16 |
410 |
0.1 |
| DL-1111 |
φ5.80-6.53 |
25 |
445 |
0.15 |
| DL-1112 |
φ7.35-8.25 |
35 |
625 |
0.2 |
| DL-1113 |
φ8.27-9.25 |
50 |
688 |
0.23 |
| DL-1114 |
φ10.4-11.68 |
70 |
740 |
0.4 |
| DL-1115 |
φ11.69-13.11 |
95 |
805 |
0.42 |
| DL-1116 |
φ13.12-14.66 |
120 |
880 |
0.6 |
| DL-1117 |
φ14.67-16.59 |
150 |
890 |
0.8 |
| DL-1118 |
φ16.60-18.77 |
185 |
1020 |
1.1 |
DL-1119
|
φ18.77-21.26 |
210 |
1120 |
1.2 |
DL-1120
|
φ21.27-24.05 |
240 |
1160 |
1.56 |
For Insulated Conductor or Cable
| Mode |
Suitable Diameter Scope(mm) |
Insulated Conductor Cable
Section(mm2) |
Length(mm) |
Weight(kg) |
|
| DU-1215 |
φ10.4-11.68 |
10 |
750 |
0.46 |
| DU-1216 |
φ11.69-13.11 |
16 |
795 |
0.6 |
| DU-1217 |
φ13.12-14.66 |
25 |
865 |
0.9 |
| DU-1218 |
φ14.67-16.59 |
35-50 |
890 |
1.22 |
| DU-1219 |
φ16.6-18.77 |
70 |
980 |
1.4 |
| DU-1220 |
φ18.78-21.26 |
95-120 |
1018 |
1.54 |
| DU-1221 |
φ21.27-24.05 |
150 |
1020 |
1.7 |
| DU-1222 |
φ24.06-27.25 |
185 |
1020 |
1.95 |
