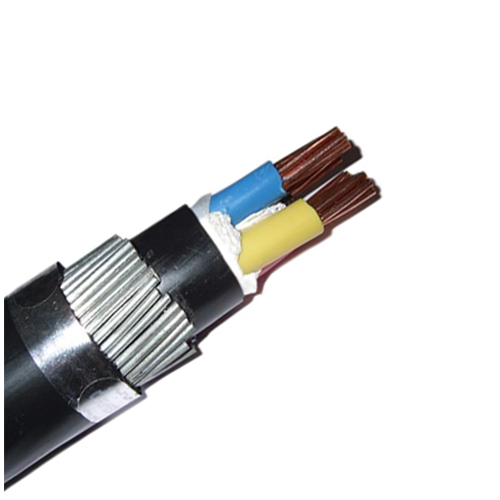

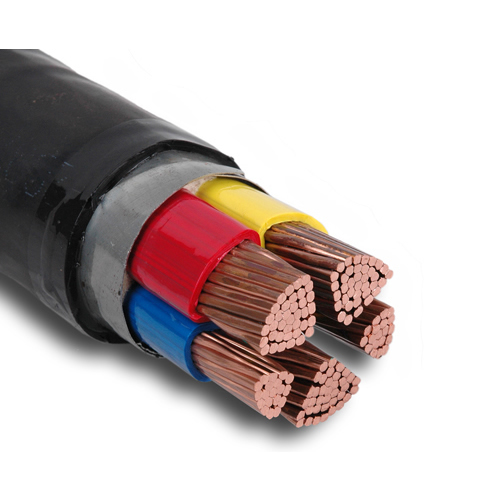

BS 6346 600/1000V & 1900/3300V PVC Insulation Armoured Electric Cables

Description Review

Description

APPLICATION

BS 6346 600/1000V & 1900/3300V PVC Insulation Armoured Electric Cables

MATERIALS

Conductor: Copper, Aluminum
Insulation: PVC
Sheath: PVC

STANDARDS

BS 6360: Specification for conductors in insulated cables and cords
BS 6346: Electric cables -—PVC insulated, armoured cables forvoltages of 600/1 000 vand 1 900/3 300 V

DATA SHEET

Table 5-Single Core 600/1000V cables with circular stranded copper conductor

Conductor	Insulation	Bedding	Aluminum armour wire	Oversheath	Overall
Section	Thickness	Thickness	Diameter	Thickness	Diameter
mm2	mm	mm	mm	mm	mm
50	1.4	0.8	1.25	1.5	19.1
70	1.4	0.8	1.25	1.6	21.1
95	1.6	0.8	1.25	1.6	23.4
120	1.6	1.0	1.6	1.7	26.3
150	1.8	1.0	1.6	1.7	28.3
185	2.0	1.0	1.6	1.8	30.8
240	2.2	1.0	1.6	1.9	34.1
300	2.4	1.0	1.6	1.9	37.0
400	2.6	1.2	2.0	2.1	42.0
500	2.8	1.2	2.0	2.1	45.6
630	2.8	1.2	2.0	2.2	49.7
800	2.8	1.4	2.5	2.4	55.8
1000	3.0	1.4	2.5	2.5	61.0

*Circular or compacted circular stranded conductor (class 2).

Table 6-Single Core 600/1000V cables with solid aluminum conductor

Conductor	Insulation	Bedding	Aluminum armour wire	Armour strip		Oversheath	Overall diameter
Section	Thickness	Thickness	Diameter	Thcikness	Width	Thickness	Wire armoured	Strip armoured
mm2	mm	mm	mm	mm	mm	mm	mm	mm
Circular solid conductor (class 1)
50	1.4	0.8	1.25	0.6	2.4	1.5	17.8	16.5
70	1.4	0.8	1.25	0.6	2.4	1.6	19.6	18.3
95	1.6	0.8	1.25	0.6	2.4	1.6	21.7	20.4
120	1.6	1.0	1.6	0.6	2.4	1.7	24.3	22.3
150	1.8	1.0	1.6	0.6	2.4	1.7	26.1	24.1
185	2.0	1.0	1.6	1.0	3.6	1.8	28.3	27.1
240	2.2	1.0	1.6	1.0	3.6	1.9	31.2	30.0
300	2.4	1.0	1.6	1.0	3.6	1.9	33.7	32.5
Circular sectoral conductor
380 (4x95)	2.6	1.2	2.0	1.4	4.8	2.0	38.4	37.2
480 (4x120)	2.8	1.2	2.0	1.4	4.8	2.1	41.7	40.5
600 (4x150)	2.8	1.2	2.0	1.4	4.8	2.2	44.6	43.4
740 (4x185)	2.8	1.4	2.5	1.4	4.8	2.3	49.5	47.3
960 (4x240)	3.0	1.4	2.5	1.8	6.4	2.5	54.9	53.5
1200 (4x300)	3.0	1.6	2.5	1.8	6.4	2.6	59.7	58.3

Table 7-Two core 600/1 000 V cables with stranded copper conductors

Conductor	Insulation	Extruded bedding	Armour	Oversheath	Overall diameter
Section	Thickness	Thickness	Diameter	Thickness	Extruded bedding	Taped bedding
mm2	mm	mm	mm	mm	mm	mm
1.5a	0.6	0.8	0.9	1.4	12.3	--
2.5a	0.7	0.8	0.9	1.4	13.6	--
4a	0.8	0.8	0.9	1.4	15.1	--
6a	0.8	0.8	0.9	1.5	16.5	--
10a	1.0	0.8	1.25	1.6	20.1	--
16a	1.0	0.8	1.25	1.6	21.9	21.9
25b	1.2	1.0	1.6	1.7	23.0	22.6
25a	1.2	1.0	1.6	1.7	26.7	26.3
35b	1.2	1.0	1.6	1.8	24.8	24.4
35a	1.2	1.0	1.6	1.8	29.2	28.8
50b	1.4	1.0	1.6	1.9	27.8	27.4
70b	1.4	1.0	1.6	1.9	30.4	30.0
95b	1.6	1.2	2.0	2.1	35.5	34.7
120b	1.6	1.2	2.0	2.2	38.0	37.2
150b	1.8	1.2	2.0	2.3	41.3	40.5
185b	2.0	1.4	2.5	2.4	46.4	45.2
240b	2.2	1.4	2.5	2.5	51.2	50.0
300b	2.4	1.6	2.5	2.7	56.4	54.8
400b	2.6	1.6	2.5	2.9	61.9	60.3

a: Circular or compacted circular stranded conductors (class 2).
b: Shaped strandded conductor (class 2).

Table 8 - Two Cores 600/1000V cables with solid aluminum conductors

Conductor	Insulation	Extruded bedding	Steel armour wire	Armour strip		Oversheath	Overall diameter
Section	Thickness	Thickness	Diameter	Thickness	Width	Thickness	Extruded bedding	Taped bedding	Strip armoured (taped bedding)
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm
16a	1.0	0.8	1.25	0.6	2.4	1.6	20.6	20.6	19.3
25b	1.2	1.0	1.6	0.6	2.4	1.7	21.3	20.9	18.9
25a	1.2	1.0	1.6	0.6	2.4	1.7	25.0	24.6	22.6
35b	1.2	1.0	1.6	0.6	2.4	1.8	22.9	22.5	20.5
35	1.2	1.0	1.6	0.6	2.4	1.8	27.2	26.8	24.8
50	1.4	1.0	1.6	0.6	2.4	1.9	25.5	25.1	23.1
70	1.4	1.0	1.6	1.0	3.6	1.9	27.7	27.3	26.1
95	1.6	1.2	2.0	1.0	3.6	2.1	32.4	31.6	29.6

a: Solid circular conductor (class 1).
b: Solid sector shaped conductor (class 1).

Table 9 - Three Cores 600/1000V cables with stranded copper conductors

Conductor	Insulation	Extruded bedding	Steel armour wire	Oversheath	Overall diameter
Section	Thickness	Thickness	Diameter	Thickness	Extruded bedding	Taped bedding
mm2	mm	mm	mm	mm	mm	mm
1.5a	0.6	0.8	0.9	1.4	12.8	--
2.5a	0.7	0.8	0.9	1.4	14.1	--
4a	0.8	0.8	0.9	1.4	15.8	--
6a	0.8	0.8	1.25	1.5	18.0	--
10a	1.0	0.8	1.25	1.6	21.2	--
16a	1.0	0.8	1.25	1.6	23.1	23.1
25b	1.2	1.0	1.6	1.7	25.0	24.6
25a	1.2	1.0	1.6	1.7	28.2	27.8
35b	1.2	1.0	1.6	1.8	27.1	26.7
35a	1.2	1.0	1.6	1.8	30.8	30.4
50b	1.4	1.0	1.6	1.9	30.5	30.1
70b	1.4	1.2	2.0	2.0	35.0	34.2
95b	1.6	1.2	2.0	2.1	39.3	38.5
120b	1.6	1.2	2.0	2.2	42.2	41.4
150b	1.8	1.4	2.5	2.4	47.5	46.3
185b	2.0	1.4	2.5	2.5	51.9	50.7
240b	2.2	1.6	2.5	2.6	57.8	56.2
300b	2.4	1.6	2.5	2.8	63.2	61.6
400b	2.6	1.6	2.5	3.0	69.6	68.0

a Circular or compacted circular stranded conductors (class 2).
b Shaped stranded conductor (class 2)

Table 10 - Three Cores 600/1000V cables with solid aluminium conductors

Conductor	Insulation	Extruded bedding	Steel armour wire	Armour strip		Oversheath	Overall diameter
Conductor	Insulation	Extruded bedding	Steel armour wire	Armour strip		Oversheath	Wire-armoured		Strip armoured(Taped bedding)
Section	Thickness	Thickness	Diameter	Thickness	Width	Thickness	Extruded bedding	Taped bedding	Strip armoured(Taped bedding)
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm
16a	1.0	0.8	1.25	0.6	2.4	1.6	21.7	21.7	20.4
25b	1.2	1.0	1.6	0.6	2.4	1.7	23.9	23.5	21.5
25a	1.2	1.0	1.6	0.6	2.4	1.7	26.4	26.0	24.0
35b	1.2	1.0	1.6	0.6	2.4	1.8	25.8	25.4	23.4
35a	1.2	1.0	1.6	0.6	2.4	1.8	28.7	28.3	26.3
50b	1.4	1.0	1.6	1.0	3.6	1.9	28.9	28.5	27.3
70b	1.4	1.2	2.0	1.0	3.6	2.0	33.0	32.2	30.2
95b	1.6	1.2	2.0	1.4	4.8	2.1	37.1	36.3	35.1
120b	1.6	1.2	2.0	1.4	4.8	2.2	39.7	38.9	37.7
150b	1.8	1.4	2.5	1.4	4.8	2.4	44.7	43.5	41.3
185b	2.0	1.4	2.5	1.4	4.8	2.5	48.7	47.5	45.3
240b	2.2	1.6	2.5	1.8	6.4	2.6	54.2	52.6	51.2
300b	2.4	1.6	2.5	1.8	6.4	2.8	59.2	57.6	56.2
