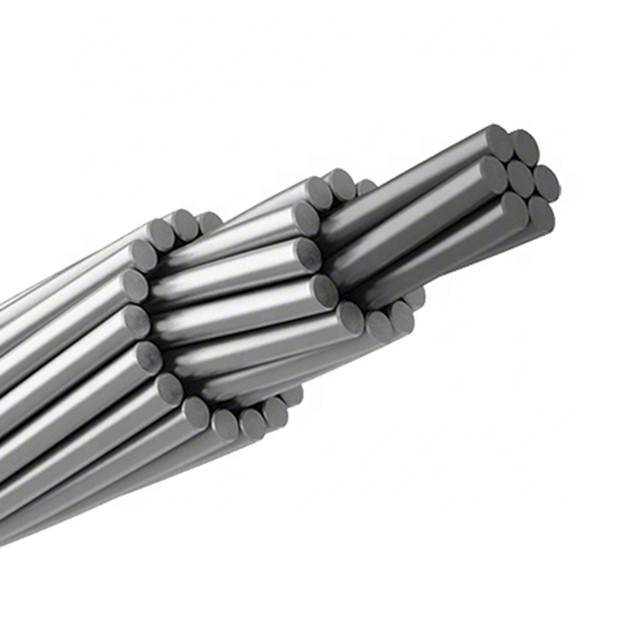

Name: (ACAR) Aluminum Alloy Recinforced Aluminum Conductors
Brand: Zhengzhou Lanxian Electric Co., Ltd.
SKU: 00099
Availability: InStock
Rating: 5 (1 reviews)

Home > Overhead Power Line Materials > Bare Conductors

(ACAR) Aluminum Alloy Recinforced Aluminum Conductors

Description Review

Description

APPLICATION

(ACAR) Aluminum Alloy Recinforced Aluminum Conductors is used as bare conductor of overhead power transmission line. ACAR offers higher strength and ampacity compare with equal weight ACSR.

MATERIALS

High strength Aluminium-magnesium-silicon Alloy 6201 wire & Aluminum 1350 wire.

STANDARDS

IEC 61089, BS EN 50182, ASTM B524, GB/T 1179, etc.

DATA SHEET

IEC 61089, BS EN 50182 type A1/A3

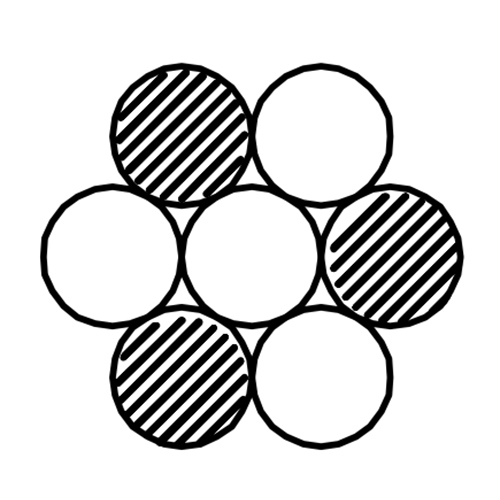

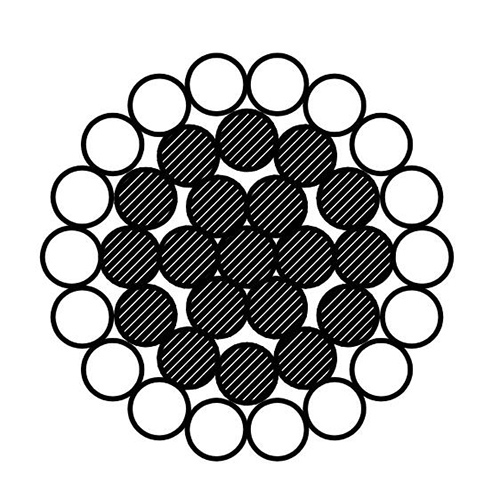

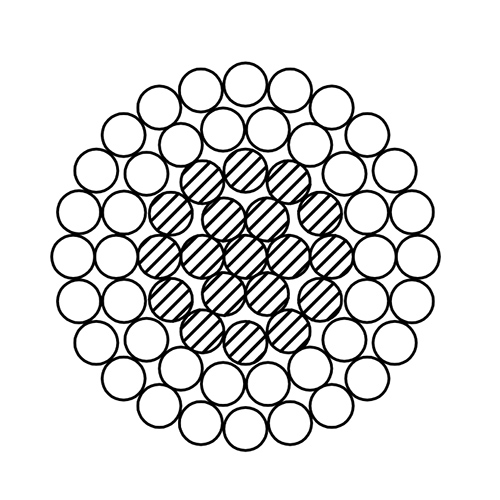

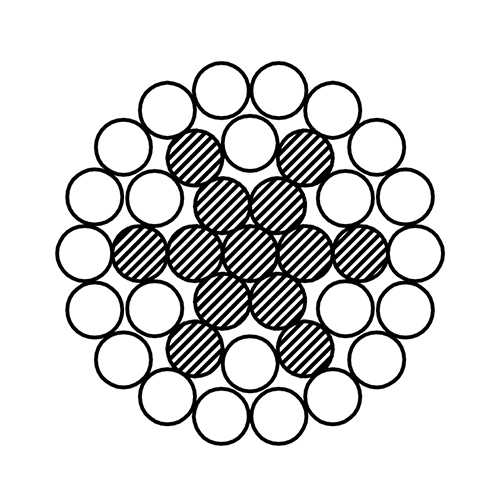

Code Name	Diameter		Number of Wires		Areas			Linera Mass	Rated Strength	D.C. Resistance
	Wire	Conductor	A1	A3	A1	A3	Total
\	mm	mm	Nos	Nos	mm2	mm2	mm2	kg/km	kN	Ohm/km
16	1.76	5.29	4	3	9.78	7.33	17.1	46.8	4.07	1.7896
25	2.21	6.62	4	3	15.3	11.5	26.7	73.1	6.29	1.1453
40	2.79	8.37	4	3	24.4	18.3	42.8	117.0	9.82	0.7158
63	3.50	10.5	4	3	38.5	28.9	67.4	184.3	14.80	0.4545
100	4.41	13.2	4	3	61.1	45.8	107	292.5	23.49	0.2863
125	2.98	14.9	12	7	83.7	48.8	132	364.1	29.29	0.2302
160	3.37	16.9	12	7	107	62.5	170	466.0	36.95	0.1798
200	3.77	18.8	12	7	134	78.1	212	582.5	44.78	0.1439
250	4.21	21.1	12	7	167	97.6	265	728.1	55.98	0.1151
250	3.05	21.4	18	19	132	139	271	746.0	64.67	0.1154
315	3.34	23.4	30	7	263	61.4	325	894.4	62.40	0.0916
315	3.43	24.0	18	19	166	175	341	940.0	81.48	0.0916
400	3.77	26.4	30	7	334	78.0	412	1135.8	76.82	0.0721
400	3.86	27.0	18	19	211	222	433	1193.7	100.30	0.0721
450	3.99	28.0	30	7	376	87.7	464	1277.8	86.42	0.0641
450	4.10	28.7	18	19	237	250	487	1342.9	112.84	0.0641
500	4.21	29.5	30	7	418	97.5	515	1419.8	96.03	0.0577
500	4.32	30.2	18	19	263	278	542	1492.1	125.38	0.0577
560	4.46	31.2	30	7	468	109	577	1590.1	107.55	0.0515
560	3.45	31.1	54	7	505	65.5	570	1573.9	103.53	0.0516
630	3.72	33.4	42	19	456	206	662	1826.0	134.59	0.0458
630	3.80	34.2	24	37	272	420	692	1909.0	169.14	0.0458
710	3.95	35.5	42	19	514	232	746	2057.8	151.68	0.0407
710	4.03	36.3	24	37	307	473	780	2151.4	190.61	0.0407
800	4.09	37.7	42	19	579	262	840	2318.7	170.90	0.0361
800	4.28	38.5	24	37	346	533	879	2424.2	214.78	0.0361
900	4.44	40.0	42	19	651	294	945	2608.5	192.27	0.0321
900	3.66	40.3	54	37	569	390	959	2649.5	207.79	0.0321
1000	3.80	41.8	72	19	818	426	1034	2855.4	195.47	0.0289
1000	3.86	42.5	54	37	632	433	1066	2943.9	230.88	0.0289
1120	4.02	44.3	72	19	916	242	1158	3198.1	218.92	0.0258
1120	4.09	45.0	54	37	708	485	1194	3297.2	258.58	0.0258
1250	4.25	46.8	72	19	1022	270	1292	3569.3	244.33	0.0231
1250	4.32	47.5	54	37	791	542	1332	3679.9	288.60	0.0231
1400	4.50	49.5	72	19	1145	302	1447	3997.6	273.65	0.0207

ASTM B524

Conductor Size		Number of Wires		Diameter		Mass per Unit Length	Rated Strength
Conductor Size		1350	6201	Wires	Conductor	Mass per Unit Length	Rated Strength
kcmil or AWG	mm2	Nos	Nos	mm	mm	kg/km	kN
30.6	15.48	4	3	1.679	5.03	42.7	3.67
#4 AWG	21.16	4	3	1.961	5.89	58.3	4.98
48.7	24.65	4	3	2.118	6.35	68	6.63
#2 AWG	33.61	4	3	2.474	7.42	92.7	8.99
77.5	39.23	4	3	2.672	8.03	108.2	10.32
#1/0AWG	53.48	4	3	3.119	9.35	147.5	11.97
123.3	62.45	4	3	3.371	10.11	172.2	13.97
#2/0AWG	67.42	4	3	3.503	10.52	185.9	14.72
155.4	78.77	4	3	3.785	11.35	217.1	17.04
#3/0AWG	84.97	4	3	3.932	11.79	234.4	18.24
195.7	99.16	4	3	4.247	12.75	273.4	21.31
#4/0AWG	107.29	4	3	4.417	13.26	295.5	23.04
246.9	125.1	4	3	4.77	14.3	345	26.87
250	126.64	15	4	2.913	14.58	349.3	24.38
250	126.64	12	7	2.913	14.58	349.3	27.58
300	152.13	15	4	3.193	15.98	419.2	28.91
300	152.13	12	7	3.193	15.98	419.2	32.83
350	177.29	15	4	3.447	17.25	489	33.23
350	177.29	12	7	3.447	17.25	489	37.41
400	202.71	15	4	3.686	18.44	558.8	37.5
400	202.71	12	7	3.686	18.44	558.8	42.35
450	228	15	4	3.909	19.56	628.6	41.59
450	228	12	7	3.909	19.56	628.6	47.15
500	253.29	15	4	4.12	20.6	698.5	46.26
500	253.29	12	7	4.12	20.6	698.5	52.49
500	253.16	33	4	2.951	20.65	698.5	44.48
500	253.16	30	7	2.951	20.65	698.5	48.04
500	253.16	24	13	2.951	20.65	698.5	52.93
500	253.16	18	19	2.951	20.65	698.5	58.72
550	278.58	15	4	4.321	21.62	768.3	50.71
550	278.58	12	7	4.321	21.62	768.3	57.83
550	278.71	33	4	3.096	21.67	768.3	48.04
550	278.71	30	7	3.096	21.67	768.3	52.04
550	278.71	24	13	3.096	21.67	768.3	57.38
550	278.71	18	19	3.096	21.67	768.3	64.05
600	304	15	4	4.514	22.58	838.1	55.6
600	304	12	7	4.514	22.58	838.1	62.72
600	303.81	33	4	3.233	22.63	838.1	52.49
600	303.81	30	7	3.233	22.63	838.1	56.94
600	303.81	24	13	3.233	22.63	838.1	62.72
600	303.81	18	19	3.233	22.63	838.1	70.28
650	329.16	33	4	3.366	23.57	908.1	56.94
650	329.16	30	7	3.366	23.57	908.1	61.39
650	329.16	24	13	3.366	23.57	908.1	68.06
650	329.16	18	19	3.366	23.57	908.1	76.06
700	354.45	33	4	3.493	24.46	977.9	60.5
700	354.45	30	7	3.493	24.46	977.9	65.39
700	354.45	24	13	3.493	24.46	977.9	71.62
700	354.45	18	19	3.493	24.46	977.9	79.62
750	380.13	33	4	3.617	25.32	1047.7	64.05
750	380.13	30	7	3.617	25.32	1047.7	59.39
750	380.13	24	13	3.617	25.32	1047.7	76.06
750	380.13	18	19	3.617	25.32	1047.7	84.52
800	405.16	33	4	3.734	26.14	1117.6	68.06
800	405.16	30	7	3.734	26.14	1117.6	73.84
800	405.16	24	13	3.734	26.14	1117.6	80.96
800	405.16	18	19	3.734	26.14	1117.6	90.3
850	430.9	33	4	3.851	26.95	1187.4	71.17
850	430.9	30	7	3.851	26.95	1187.4	77.4
850	430.9	24	13	3.851	26.95	1187.4	85.41
850	430.9	18	19	3.851	26.95	1187.4	95.19
900	456.26	33	4	3.962	27.74	1257.3	75.65
900	456.26	30	7	3.962	27.74	1257.3	81.85
900	456.26	24	13	3.962	27.74	1257.3	90.3
900	456.26	18	19	3.962	27.74	1257.3	99.64
950	481.16	33	4	4.069	28.47	1327.1	79.62
950	481.16	30	7	4.069	28.47	1327.1	86.3
950	481.16	24	13	4.069	28.47	1327.1	95.19
950	481.16	18	19	4.069	28.47	1327.1	106.31
1000	506.64	33	4	4.176	29.24	1396.9	84.07
1000	506.64	30	7	4.176	29.24	1396.9	90.74
1000	506.64	24	13	4.176	29.24	1396.9	100.53
1000	506.64	18	19	4.176	29.24	1396.9	112.1
1000	506.39	54	7	3.251	29.26	1396.9	87.63
1000	506.39	48	13	3.251	29.26	1396.9	93.86
1000	506.39	42	19	3.251	29.26	1396.9	101.86
1000	506.39	33	28	3.251	29.26	1396.9	122.33
1100	557.22	33	4	4.379	30.66	1537.3	92.08
1100	557.22	30	7	4.379	30.66	1537.3	100.08
1100	557.22	24	13	4.379	30.66	1537.3	110.32
1100	557.22	18	19	4.379	30.66	1537.3	123.22
1100	557.48	54	7	3.411	30.71	1537.3	96.08
1100	557.48	48	13	3.411	30.71	1537.3	101.86
1100	557.48	42	19	3.411	30.71	1537.3	110.32
1100	557.48	33	28	3.411	30.71	1537.3	118.32
1200	608.13	33	4	4.575	32.03	1677.2	100.53
1200	608.13	30	7	4.575	32.03	1677.2	108.98
1200	608.13	24	13	4.575	32.03	1677.2	120.55
1200	608.13	18	19	4.575	32.03	1677.2	134.34
1200	608.39	54	7	3.564	32.08	1677.2	102.72
1200	608.39	48	13	3.564	32.08	1677.2	109.87
1200	608.39	42	19	3.564	32.08	1677.2	118.77
1200	608.39	33	28	3.564	32.08	1677.2	128.11
1250	633.35	33	4	4.669	32.69	1745.6	104.98
1250	633.35	30	7	4.669	32.69	1745.6	113.87
1250	633.35	24	13	4.669	32.69	1745.6	125.44
1250	633.35	18	19	4.669	32.69	1745.6	140.12
1250	632.9	54	7	3.635	32.72	1745.6	107.2
1250	632.9	48	13	3.635	32.72	1745.6	114.32
1250	632.9	42	19	3.635	32.72	1745.6	123.66
1250	632.9	33	28	3.635	32.72	1745.6	133.45
1300	658.39	33	4	4.76	33.33	1815.6	108.98
1300	658.39	30	7	4.76	33.33	1815.6	118.32
1300	658.39	24	13	4.76	33.33	1815.6	130.33
1300	658.39	18	19	4.76	33.33	1815.6	145.46
1300	658.84	54	7	3.708	33.38	1815.6	111.65
1300	658.84	48	13	3.708	33.38	1815.6	119.21
1300	658.84	42	19	3.708	33.38	1815.6	128.55
1300	658.84	33	28	3.708	33.38	1815.6	138.78
1400	709.42	54	7	3.848	34.65	1955.4	117.88
1400	709.42	48	13	3.848	34.65	1955.4	126.33
1400	709.42	42	19	3.848	34.65	1955.4	137.01
1400	709.42	33	28	3.848	34.65	1955.4	148.13
1500	759.93	54	7	3.983	35.39	2095.3	126.33
1500	759.93	48	13	3.983	35.84	2095.3	135.23
1500	759.93	42	19	3.983	35.84	2095.3	146.79
1500	759.93	33	28	3.983	35.84	2095.3	158.8
1600	811.16	54	7	4.115	37.03	2235.2	135.23
1600	811.16	48	13	4.115	37.03	2235.2	144.57
1600	811.16	42	19	4.115	37.03	2235.2	156.58
1600	811.16	33	28	4.115	37.03	2235.2	169.48
1700	860.97	54	7	4.239	38.15	2375.1	143.23
1700	860.97	48	13	4.239	38.15	2375.1	153.46
1700	860.97	42	19	4.239	38.15	2375.1	166.36
1700	860.97	33	28	4.239	38.15	2375.1	180.15
1750	887.1	54	7	4.303	38.74	2445.1	147.68
1750	887.1	48	13	4.303	38.74	2445.1	157.91
1750	887.1	42	19	4.303	38.74	2445.1	171.26
1750	887.1	33	28	4.303	38.74	2445.1	185.49
1800	912.26	54	7	4.364	39.27	2515	151.68
1800	912.26	48	13	4.364	39.27	2515	162.36
1800	912.26	42	19	4.364	39.27	2515	176.15
1800	912.26	33	28	4.364	39.27	2515	190.83
1900	962.84	54	7	4.483	40.36	2654.9	160.14
1900	962.84	48	13	4.483	40.36	2654.9	171.7
1900	962.84	42	19	4.483	40.36	2654.9	185.94
1900	962.84	33	28	4.483	40.36	2654.9	201.5
2000	1013.74	54	7	4.6	41.4	2793.3	168.59
2000	1013.74	48	13	4.6	41.4	2793.3	180.6
2000	1013.74	42	19	4.6	41.4	2793.3	195.72
2000	1013.74	33	28	4.6	41.4	2793.3	211.74
2000	1012.9	72	19	3.764	41.4	2793.3	182.38
2000	1012.9	63	28	3.764	41.4	2793.3	193.05
2000	1012.9	54	37	3.764	41.4	2793.3	207.29
2250	1139.35	72	19	3.993	43.92	3174.3	202.39
2250	1139.35	63	28	3.993	43.92	3174.3	214.85
2250	1139.35	54	37	3.993	43.92	3174.3	230.86
2500	1265.8	72	19	4.209	46.3	3526.9	225.08
2500	1265.8	63	28	4.209	46.3	3526.9	238.87
2500	1265.8	54	37	4.209	46.3	3526.9	256.66
2750	1392.9	72	19	4.415	48.57	3879.6	247.32
2750	1392.9	63	28	4.415	48.57	3879.6	262.45
2750	1392.9	54	37	4.415	48.57	3879.6	282.46
3000	1520.64	72	19	4.613	50.75	4232.3	270.01
3000	1520.64	63	28	4.613	50.75	4232.3	286.91
3000	1520.64	54	37	4.613	50.75	4232.3	308.26
