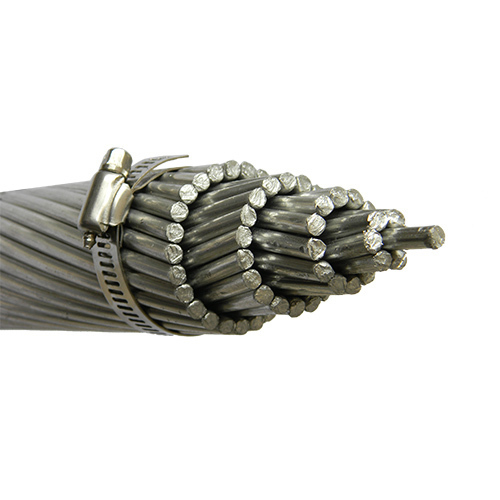

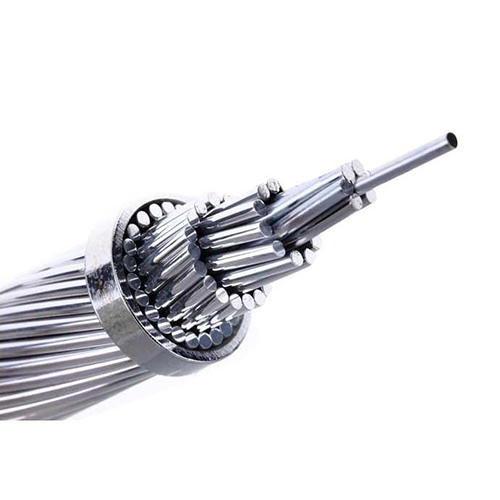

Name: (AAAC) All Aluminum Alloy Conductor
Brand: Zhengzhou Lanxian Electric Co., Ltd.
SKU: 00095
Availability: InStock
Rating: 5 (1 reviews)

Home > Overhead Power Line Materials > Bare Conductors

Description Review

Description

APPLICATION

(AAAC) All Aluminum Alloy Conductor is used as bare conductor for primary and secondary power distribution. AAAC has higher strength and electrical resistance than same size AAC conductor.

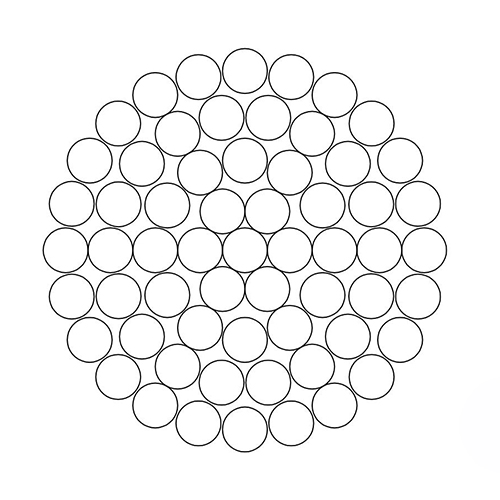

MATERIALS

Hard drawn round Aluminium-magnesium-silicon Alloy 6201 wires, properties meet or exceed international standards.

STANDARDS

IEC 61089, NF C 34-125, BS 3242, BS EN50182, DIN 48201, ASTM B399, GB 9329, etc.

DATA SHEET

IEC 61089 type A2 conductor

Code	Section	Number of Wires	Diameter		Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
Code	Section	Number of Wires	Wire	Conductor	Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
\	mm2	Nos	mm	mm	kg/km	kN	Ω/km
16	18.4	7	1.83	5.49	50.4	5.43	1.7896
25	28.8	7	2.29	6.87	78.7	8.49	1.1453
40	46	7	2.89	8.67	125.9	13.58	0.7158
63	72.5	7	3.36	10.8	198.3	21.39	0.4545
100	115	19	2.78	13.9	316.3	33.95	0.2877
125	144	19	3.1	15.5	395.4	42.44	0.2302
160	184	19	3.51	17.55	506.1	54.32	0.1798
200	230	19	3.93	19.65	632.7	67.91	0.1439
250	288	19	4.39	21.95	790.8	84.68	0.1151
315	363	37	3.53	24.71	998.9	106.95	0.0916
400	460	37	3.98	27.86	1268.4	135.81	0.0721
450	518	37	4.22	29.54	1426.9	152.79	0.0641
500	575	37	4.45	31.15	1585.5	169.76	0.0577
560	645	61	3.67	33.03	1778.4	190.14	0.0516
630	725	61	3.89	35.01	2000.7	213.9	0.0458
710	817	61	4.13	37.17	2254.8	241.07	0.0407
800	921	61	4.38	39.42	2540.6	271.62	0.0361
900	1036	91	3.81	41.91	2861.1	305.58	0.0321
1000	1151	91	4.01	44.11	3179	339.53	0.0289
1120	1289	91	4.25	46.75	3560.5	380.27	0.0258
1250	1439	91	4.49	49.39	3973.7	424.41	0.0231

NF C 34-125

Code	Section	Number of Wires	Diameter		Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
Code	Section	Number of Wires	Wire	Conductor	Linear Mass	Rated Strength	Max. D.C. Resistance at 20℃
\	mm2	Nos	mm	mm	kg/km	daN	Ω/km
ASTER 22	21.99	7	2.00	6.00	60.2	710	1.5
ASTER 34.4	34.36	7	2.50	7.50	94.1	1105	0.958
ASTER 54.6	54.55	7	3.15	9.45	149	1755	0.603
ASTER 75.5	75.54	19	2.25	11.25	208	2430	0.438
ASTER 117	116.98	19	2.80	14.00	322	3765	0.283
ASTER 148	168.01	19	3.15	15.75	407	4765	0.224
ASTER 181.6	181.62	37	2.50	17.50	500	5845	0.183
ASTER 228	227.83	37	2.80	19.60	627	7340	0.146
ASTER 288	288.34	37	3.15	22.05	794	9280	0.115
ASTER 366	366.22	37	3.55	24.85	1009	11785	0.0905
ASTER 570	570.22	61	3.45	31.05	1574	18360	0.0583
ASTER 851	850.66	91	3.45	37.95	2354	27390	0.0391
ASTER 1144	1143.51	91	4.00	44.00	3164	36260	0.0292
ASTER 1600	1595.93	127	4.00	52.00	4425	50640	0.0206

BS 3242

Code	Section	Number of Wires	Diameter		Linear Mass	Calculated Breaking Load	Max. D.C. Resistance at 20℃
Code	Section	Number of Wires	Wires	Conductor	Linear Mass	Calculated Breaking Load	Max. D.C. Resistance at 20℃
\	mm2	Nos	mm	mm	kg/km	kN	Ω/km
BOX	18.8	7	1.85	5.55	51.4	5.55	1.748
ACACIA	23.8	7	2.08	6.24	64.9	7.02	1.3828
ALMOND	30.1	7	2.34	7.02	82.2	8.88	1.0926
CEDAR	35.5	7	2.54	7.62	96.8	10.46	0.9273
DEODAR	42.2	7	2.77	9.31	115.2	12.44	0.7797
FIR	47.8	7	2.95	8.85	130.6	14.11	0.6875
HAZE	59.9	7	3.3	9.9	163.4	17.66	0.5494
PINE	71.6	7	3.61	10.83	195.6	21.14	0.4591
HOLLY	84.1	7	3.91	11.73	229.5	24.79	0.3913
WILLOW	89.7	7	4.04	12.12	245	26.47	0.3665
OAK	118.9	7	4.65	13.95	324.5	35.07	0.2767
MULBERRY	150.9	19	3.18	15.9	414.3	44.52	0.2192
ASH	180.7	19	3.48	17.4	496.1	53.31	0.183
ELM	211	19	3.76	18.8	579.2	52.24	0.1568
POPLAR	239.4	37	2.87	20.09	659.4	70.61	0.1387
SYCAMORE	303.2	37	3.23	22.61	832.5	89.4	0.1095
UPAS	362.1	37	3.53	24.71	997.5	106.82	0.0917
YEW	479	37	4.06	28.42	1319.6	141.31	0.0693
TOTARA	498.1	37	4.14	28.98	1372.1	146.93	0.0666
RUBUS	586.9	61	3.5	31.5	1622	173.13	0.0567
SORBUS	659.4	61	3.71	33.39	1822.5	194.53	0.0505
ARAUCARIA	821.1	61	4.14	37.26	2269.4	242.24	0.0406
REDWOOD	996.2	61	4.56	41.04	2753.2	293.88	0.0334

DIN 48201

Code	Section	Number of Wires	Diameter		Linear Mass	Calculated Breaking Load	Max. D.C. Resistance at 20℃
Code	Section	Number of Wires	Wire	Conductor	Linear Mass	Calculated Breaking Load	Max. D.C. Resistance at 20℃
\	mm2	Nos	mm	mm	kg/km	kN	Ω/km
16	15.89	7	1.7	5.1	43	4.44	2.091
25	24.25	7	2.1	6.3	66	6.77	1.3703
35	34.36	7	2.5	7.5	91	9.6	0.9669
50	49.48	7	3.0	9	135	13.82	0.6714
50	48.35	19	1.8	9	133	13.5	0.6905
70	65.81	19	2.1	10.5	181	18.38	0.5073
95	93.27	19	2.5	12.5	256	26.05	0.3579
120	116.99	19	2.8	14	322	32.68	0.2854
150	147.11	37	2.25	15.8	406	41.09	0.2274
185	181.62	37	2.5	17.5	500	50.73	0.1842
240	242.54	61	2.25	10.3	670	67.74	0.1383
300	299.43	61	2.5	22.5	827	83.63	0.112
400	400.14	61	2.89	26	1104	111.76	0.0838
500	499.63	61	3.23	29.1	1379	139.6	0.06709
625	626.2	91	2.96	32.6	1732	174.9	0.054
800	802.09	91	3.35	36.9	2218	224.02	0.0418
1000	999.71	91	3.74	41.1	2767	279.22	0.0335

ASTM B399

Code	Size		Number of Wires	Diameter		Linear Mass	Calculated Breaking Load	Max. D.C. Resistance at 20℃
Code	Size		Number of Wires	Wire	Conductor	Linear Mass	Calculated Breaking Load	Max. D.C. Resistance at 20℃
\	AWG/MCM	mm2	Nos	mm	mm	kg/km	kN	Ω/km
Akron	6	15.51	7	1.68	5.04	42.7	4.92	2.1598
Alton	4	24.67	7	2.12	6.36	67.56	7.84	1.3557
Ames	2	39.26	7	2.67	8.01	107.5	12.5	0.8547
Azusa	1/0	62.46	7	3.37	10.11	171	19	0.5365
Anaheim	2/0	78.75	7	3.78	11.34	215.16	24	0.4264
Amherst	3/0	99.2	7	4.25	12.75	271.5	30.2	0.3373
Alliance	4/0	125.1	7	4.77	14.31	342.6	38.1	0.2678
Butte	312.8	158.5	19	3.26	16.3	434	46.7	0.2112
Canton	394.5	199	19	3.66	18.3	547.4	59	0.1676
Cairo	465.4	235.8	19	3.98	19.9	645.7	69.6	0.1431
Darien	559.5	283.5	19	4.36	21.8	776.3	83.6	0.1181
Elgin	652.4	330.6	19	4.71	23.55	970.6	97.5	0.1012
Flint	740.8	375.4	37	3.59	25.13	1028	108	0.08944
Greeley	927.2	469.8	37	4.02	28.14	1287	136	0.07133
