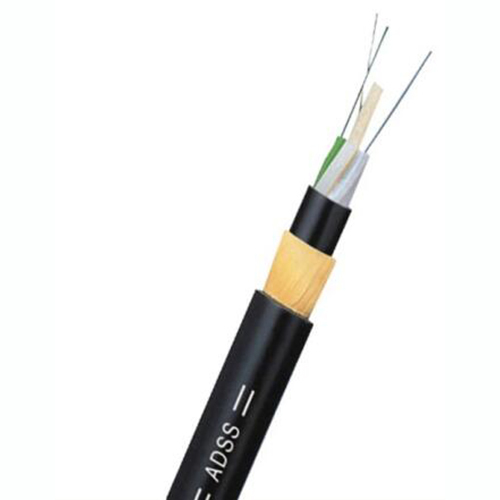

(ADSS) All Dielectric Self Supporting Aerial Installation Cable is used as lead-in and lead-out optical cable of OPGW system, as the tramission optical cable of the optical fiber communication system in the high voltage(110-220kV) power work. Especially in many places, it is very convenient to use it when replacing old communication lines.
Fibers, Kevlar, PE, PBT, FRP, etc
IEEE Std 1222, DL/T 788, etc.
Short Span
| Span |
Weight |
Diameter |
Initial Tension |
| N |
N |
| Meter |
kg/km |
mm |
Unload |
Load |
| 12 fibers per tube |
| 50 |
110 |
9.0 - 10.5 |
892 |
1479 |
| 100 |
110 |
9.0 - 10.5 |
1338 |
2043 |
| 150 |
110 |
9.0 - 10.5 |
2232 |
3286 |
| 200 |
110 |
12.2 |
3280 |
4800 |
| 24 fibers per tube |
| 50 |
115 |
9.0 - 10.5 |
901 |
1486 |
| 150 |
115 |
9.0 - 10.5 |
2261 |
3304 |
| 200 |
115 |
12.2 |
3322 |
4826 |
Long Span
| Span |
Weight |
Diameter |
Initial Tension |
| N |
N |
| Meter |
kg/km |
mm |
Unload |
Load |
| 12 fibers per tube |
| 100 |
132 |
12.2 |
6000 |
6280 |
| 200 |
134 |
12.4 |
6900 |
71020 |
| 300 |
138 |
12.6 |
8200 |
84520 |
| 400 |
144 |
13.0 |
11500 |
12020 |
| 500 |
148 |
13.3 |
12200 |
12400 |
| 600 |
162 |
13.6 |
17500 |
17852 |
| 700 |
173 |
13.9 |
21600 |
22200 |
| 800 |
178 |
14.2 |
24200 |
24320 |
 |
 |

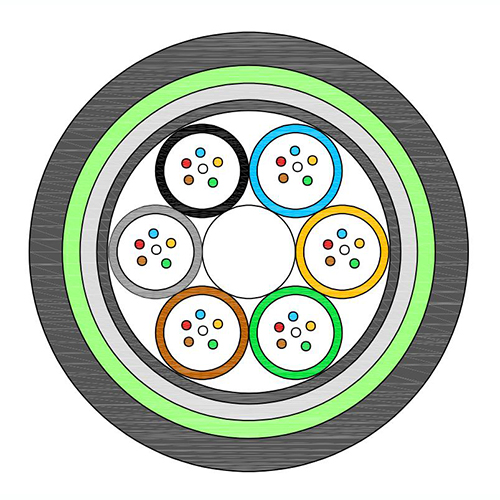

| ADSS-Short Span |

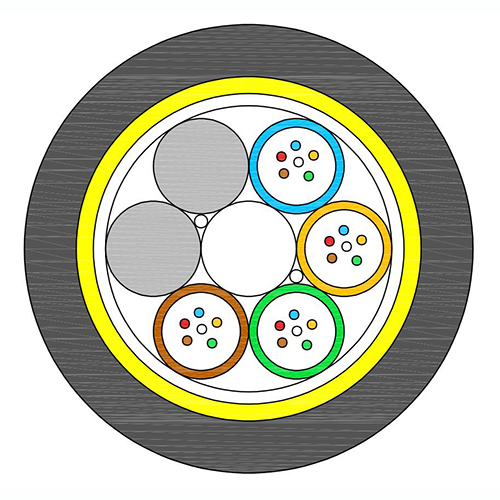

ADSS-Long Span |
