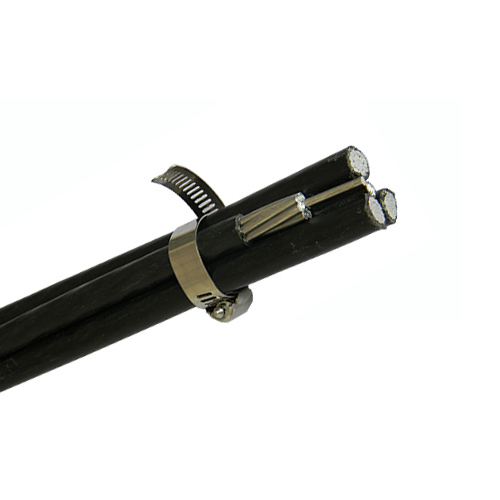

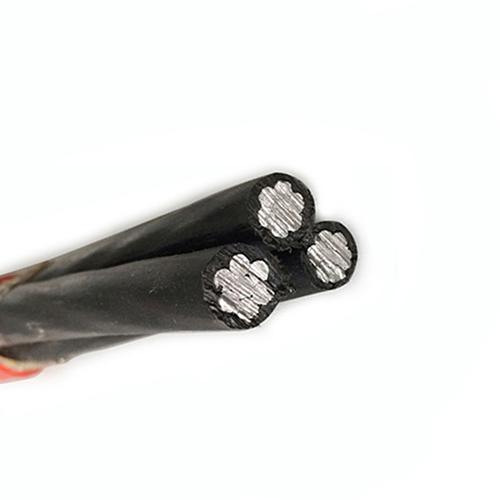

(ABC) 0.6/1kV Aerial Bundle Cable-NFC Standard Insulated Cables Assembled in Bundles

Description Review

Description

APPLICATION

(ABC) 0.6/1kV Aerial Bundle Cable-NFC Standard Insulated Cables Assembled in Bundles is used for 0.6/1kV overhead power distribution lines, strong weather resistance, UV stable, long term working temperature 90°C for XLPE insulation.

MATERIALS

Aluminum, Aluminum Alloy, Steel, PE, XLPE

STANDARDS

NFC 33 209, PIESA 1004, SANS 1418-2, etc.

DATA SHEET

NFC 33 209

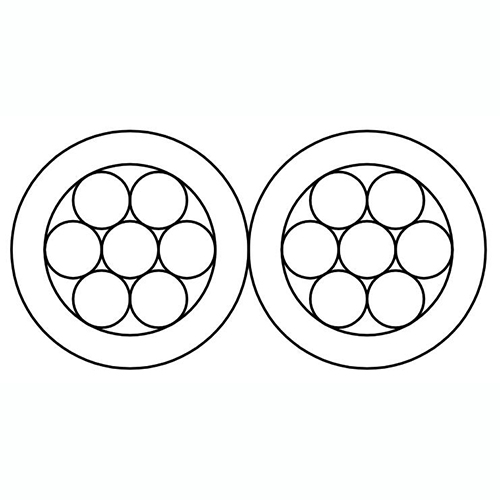

Two Cores

Size		Conductor Stranding	Insulation Thickness	Bundle Diameter (Approx.)	Rated Strength	Max. D.C. Resistance at 20℃
Cores	Section	Conductor Stranding	Insulation Thickness	Bundle Diameter (Approx.)	Rated Strength	Max. D.C. Resistance at 20℃
Nos	mm2	Nos	mm	mm	daN	Ω/km
2	16	7	1.2	15.0	190	1.91
2	25	7	1.4	18.0	300	1.20
2	35	7	1.6	20.8	-	0.868
2	50	7	1.6	23.0	-	0.641

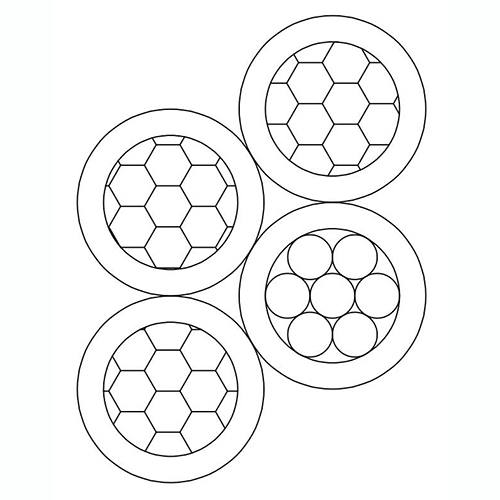

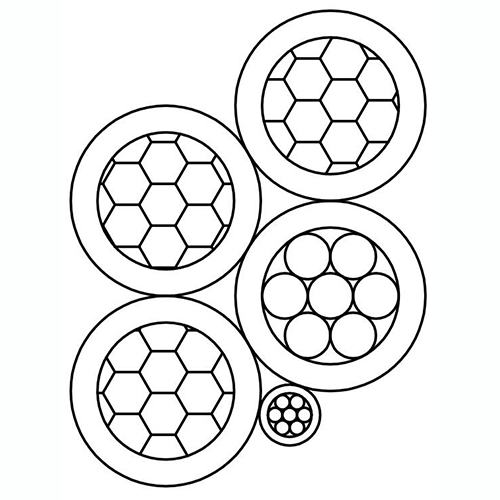

3+1+K Cores(K is number of street lighting core, K=0, 1, 2 or 3)

Phase Core					Neutral Core			Street Lighting Core
Cores	Section	Stranding	Insulation Thickness	Max. D.C. Resistance at 20℃	Cores	Section	Rated Strength	Cores	Section
Nos	mm2	Nos	mm	Ω/km	Nos	mm2	daN	Nos	mm2
3	25	7	1.4	1.20	1	54.6	1660	K	16
3	35	7	1.6	0.868	1	54.6	1660	K	16
3	50	7	1.6	0.641	1	54.6	1660	K	16
3	70	12	1.8	0.443	1	54.6	1660	K	16
3	70	12	1.8	0.443	1	54.6	1660	K	25
3	70	12	1.8	0.443	1	70	2050	K	16
3	95	19	1.8	0.320	1	70	2050	K	16
3	120	19	1.8	0.253	1	70	2050	K	16
3	120	19	1.8	0.253	1	95	2750	K	16
3	150	19	1.7	0.206	1	95	2750	K	16

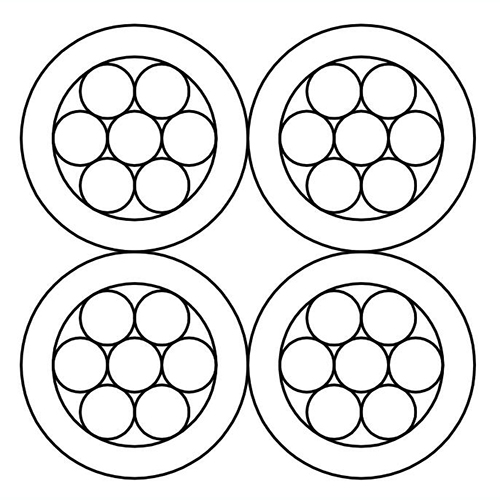

Four Cores

Size		Conductor Stranding	Insulation Thickness	Bundle Diameter (Approx.)	Rated Strength	Max. D.C. Resistance at 20℃
Cores	Section	Conductor Stranding	Insulation Thickness	Bundle Diameter (Approx.)	Rated Strength	Max. D.C. Resistance at 20℃
Nos	mm2	Nos	mm	mm	daN	Ω/km
4	16	7	1.2	18.2	190	1.91
4	25	7	1.4	21.8	300	1.20
4	35	7	1.6	25.2	-	0.868
